General Specifications

Name

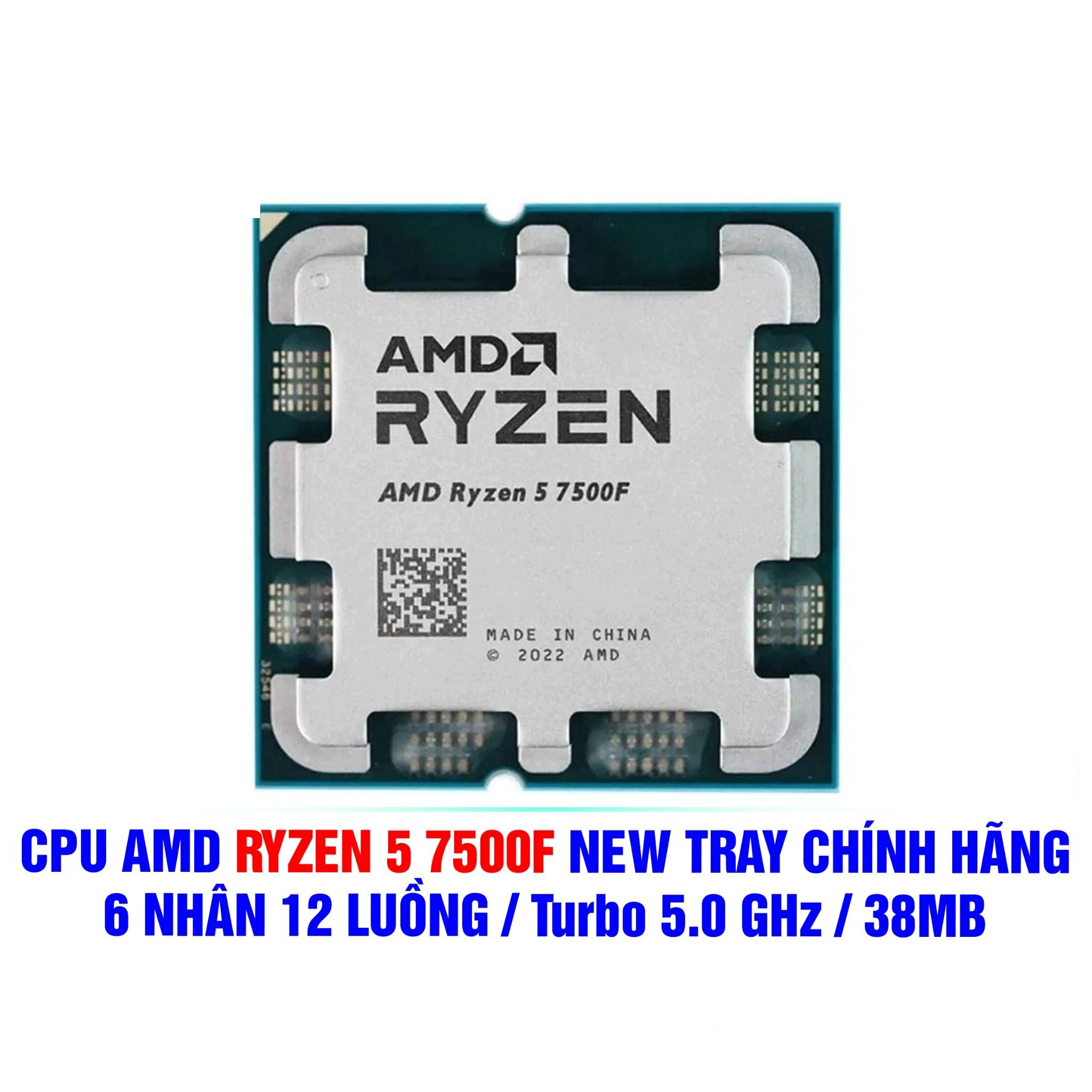

AMD Ryzen™ 5 7500F

Family

Ryzen

Series

Ryzen 7000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

Global

Former Codename

“Raphael AM5”

Architecture

“Zen 4”

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 5Ghz

Base Clock

3.7Ghz

L1 Cache

384KB

L2 Cache

6MB

L3 Cache

32MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

2

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

X670E
X670
B650E
B650

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

AMD Wraith Stealth

Max. Operating Temperature (Tjmax)

95°C

Launch Date

07/22/2023

*OS Support

Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support

Yes

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

1

Native SATA Ports

0

Native PCIe® Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670E          12x Gen4
AMD X670            12x Gen4
AMD B650E           8x Gen4
AMD B650             8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

Memory Channels

2

Max. Memory

128GB

System Memory Subtype

UDIMM

Max Memory Speed

1x1R                 5200 MT/s
1x2R                 5200 MT/s
2x1R                 3600 MT/s
2x2R                 3600 MT/s

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics

Discrete Graphics Card Required

Product IDs

Product ID MPK

100-100000597MPK

Product ID Tray

100-000000597

Key Features

Supported Technologies

AMD EXPO™ Technology
AMD Ryzen™ Technologies
