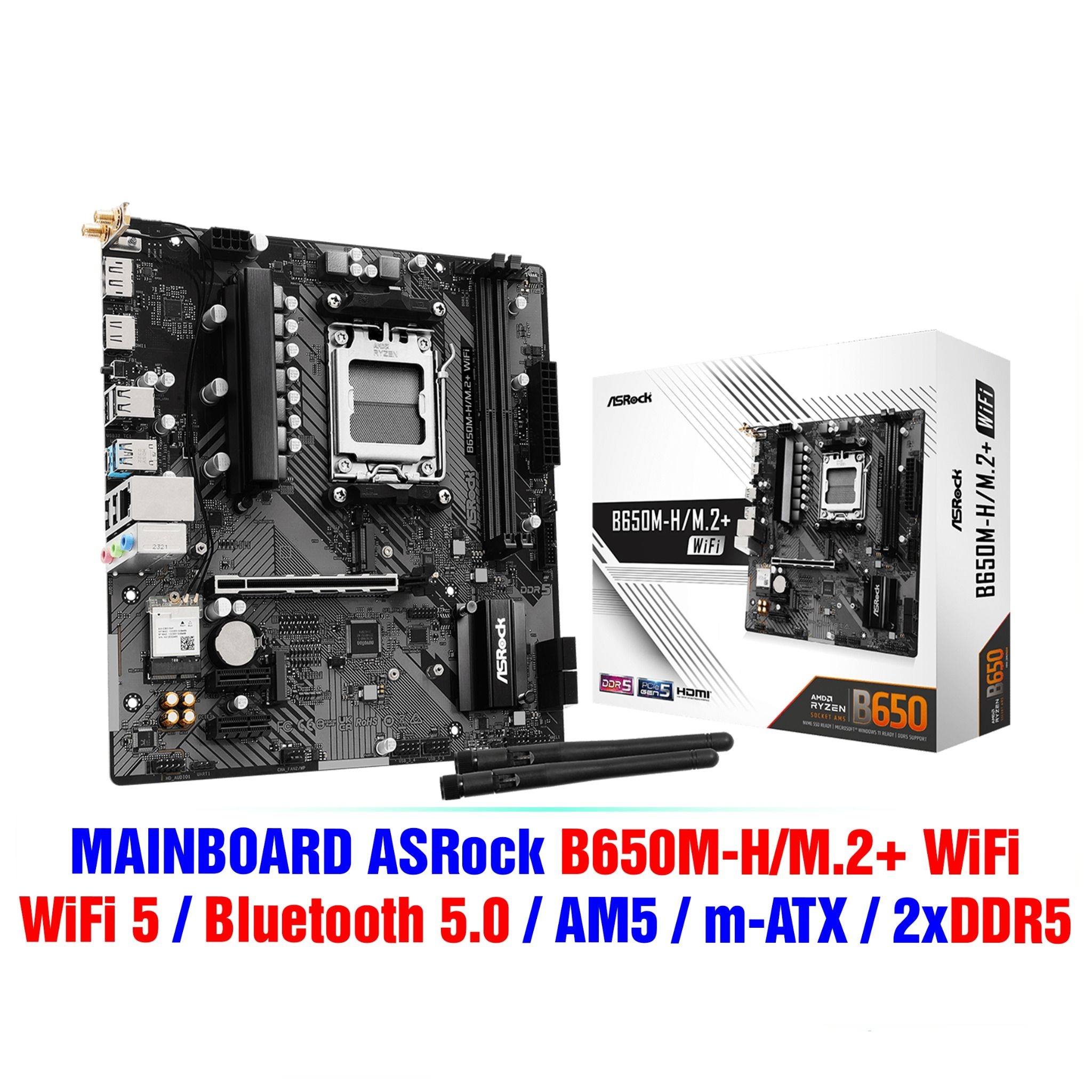

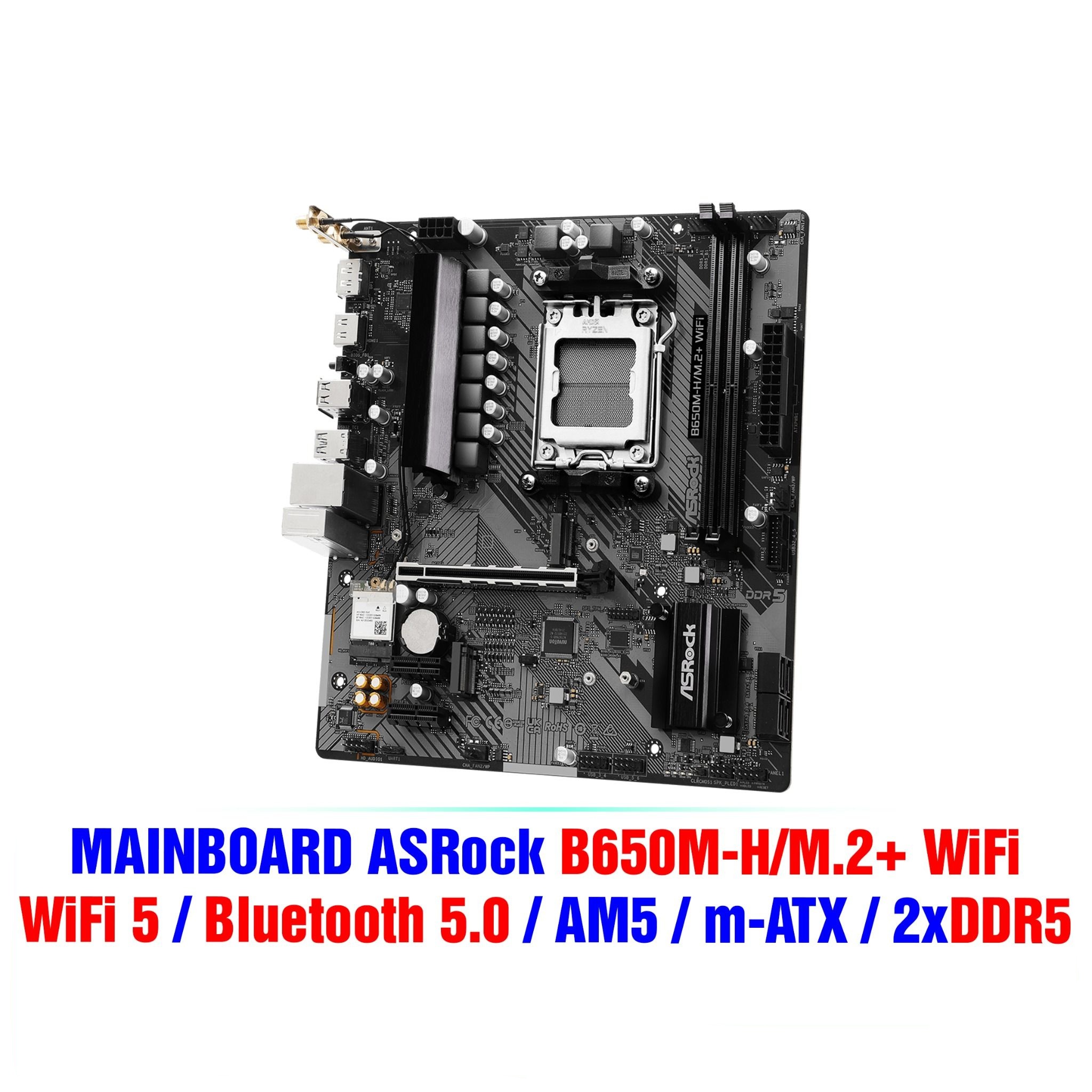

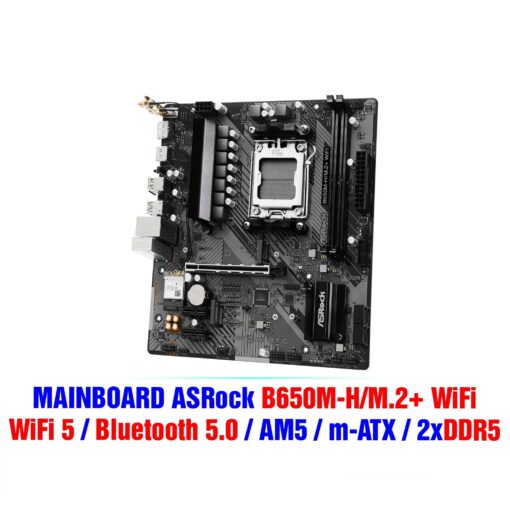

DDR5 – MAINBOARD ASRock B650M-H/M.2+ WiFi ( WiFi 5 / Bluetooth 5.0 / AM5 / m-ATX / 2xDDR5 )

Giá: 2,990,000 ₫

Thị trường: ~~3,490,000 ₫~~

Tiết kiệm: 500,000 ₫ (14%)

Hãng sản xuất: Asrock
Model: B650MM-H/M.2+ WIFI
Hỗ trợ ram: DDR4
Hỗ trợ cpu: Supports AMD Ryzen™ 9000, 8000 and 7000 (AM5)
Bảo hành: 36 Tháng 1 đổi 1

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: Amd B650, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

MAINBOARD ASRock B650M-H/M.2+ WiFi ( WiFi 5 / Bluetooth 5.0 / AM5 / m-ATX / 2xDDR5 )

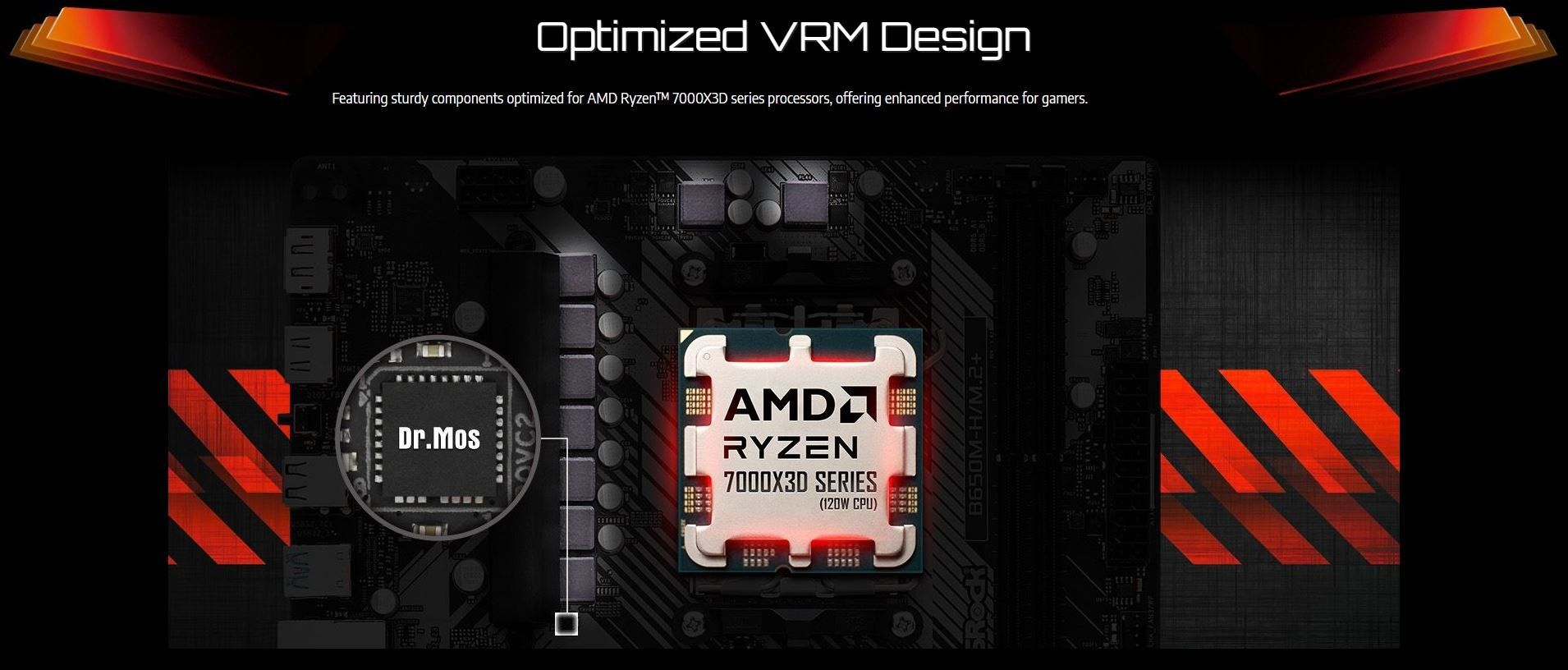

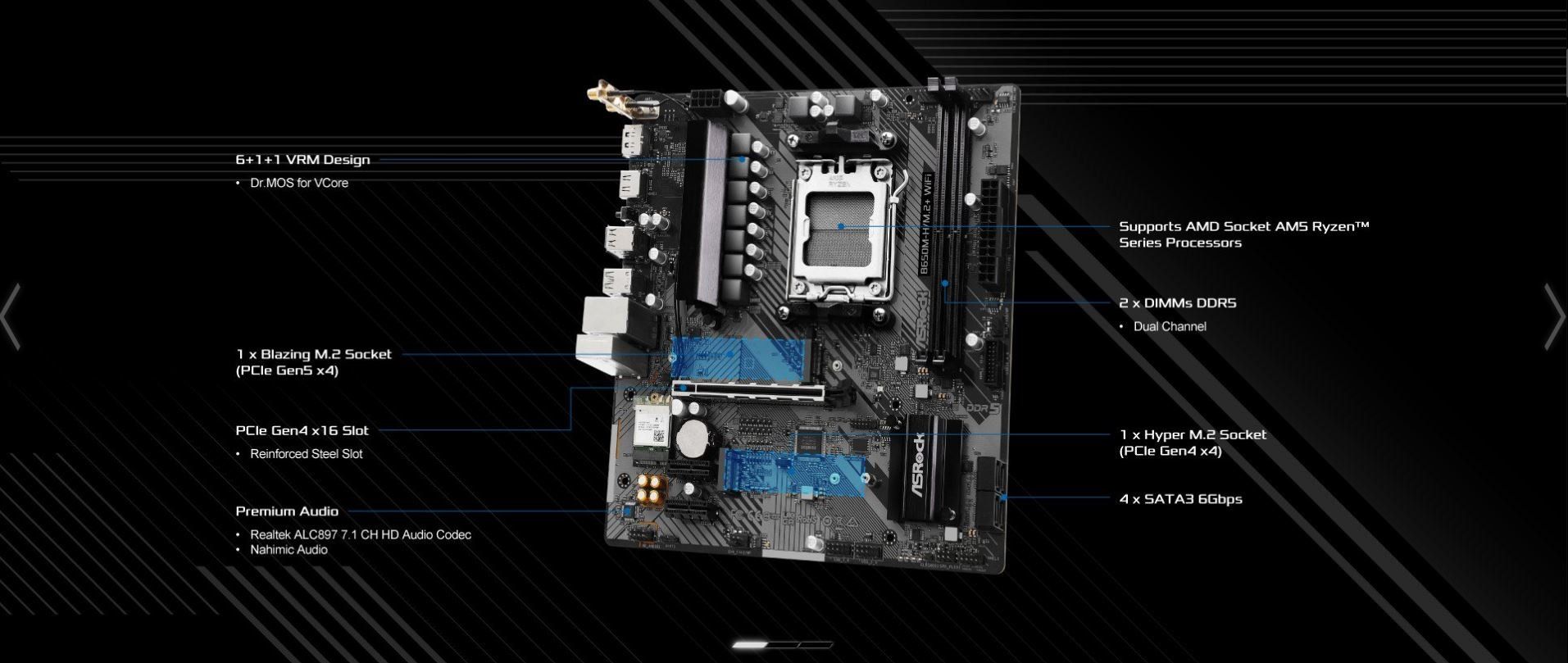

Unique Feature	Superb Productivity – PCIe Gen5 (M.2) – Dual Channel DDR5 Rock-Solid Durability – 6+1+1 Power Phase, 50A Dr.MOS for VCore Ultrafast Gaming – 802.11ac Wi-Fi Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker
CPU	– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	– AMD B650
Memory	– Dual Channel DDR5 Memory Technology – 2 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)* – Max. capacity of system memory: 128GB* – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H
Wireless LAN	– 802.11ac Wi-Fi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 5.0
Slots	CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks

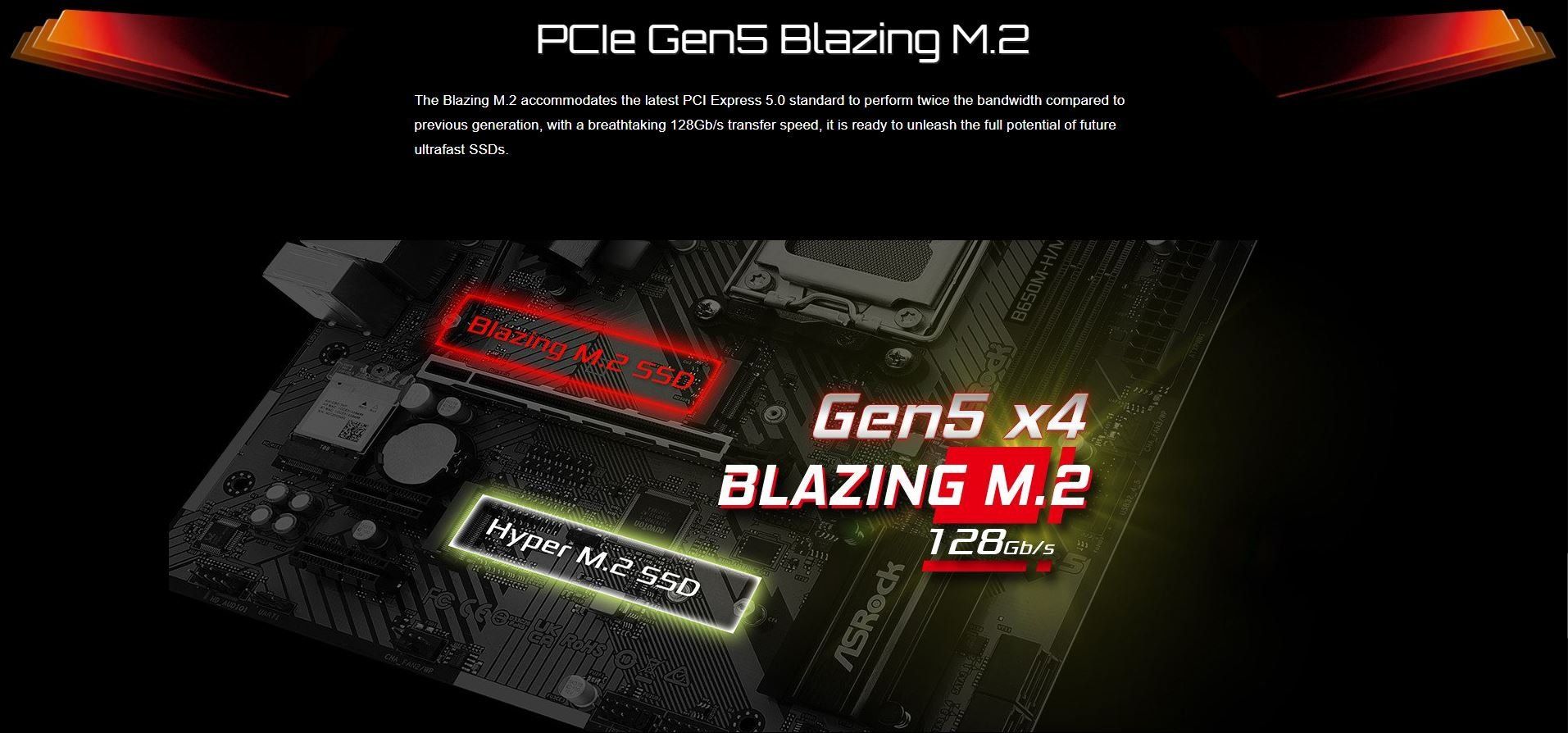

Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
RAID	– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
USB	– 1 x USB 3.2 Gen1 Type-C (Rear) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection

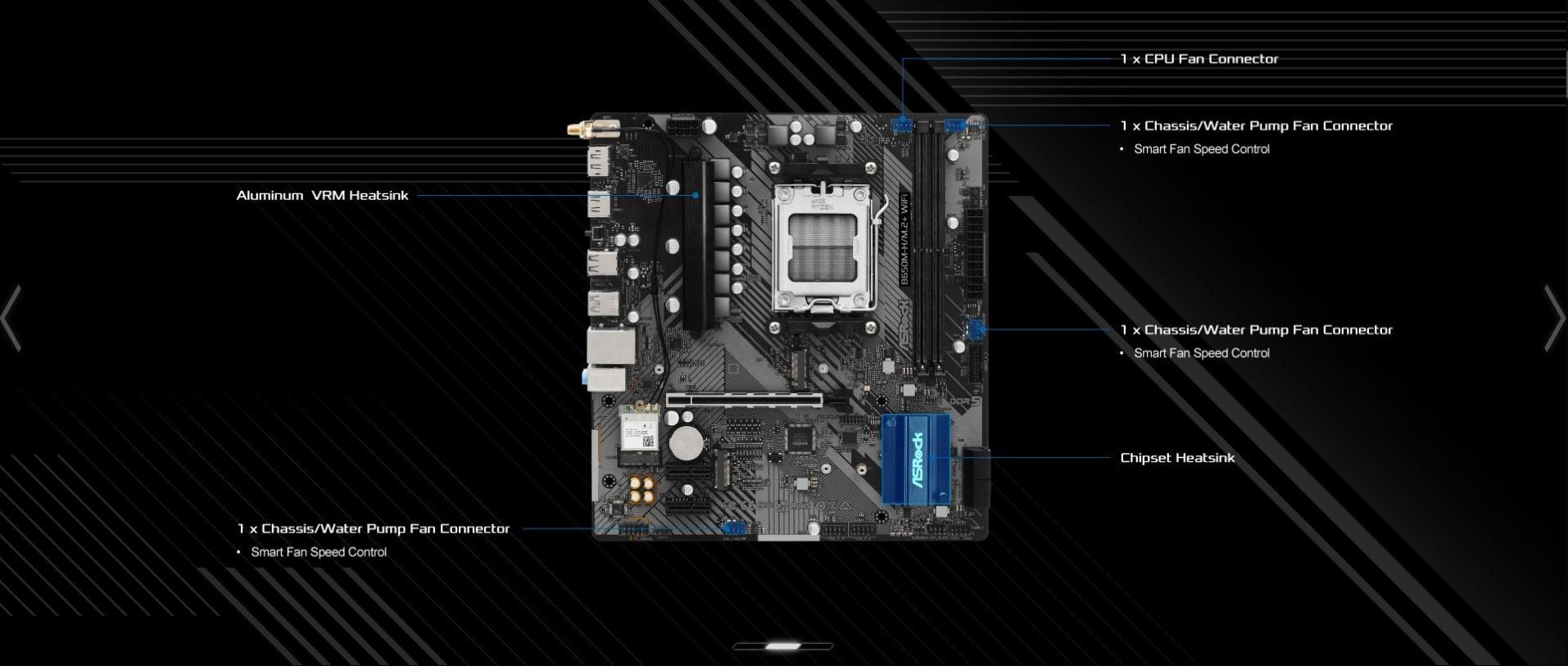

Connector	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

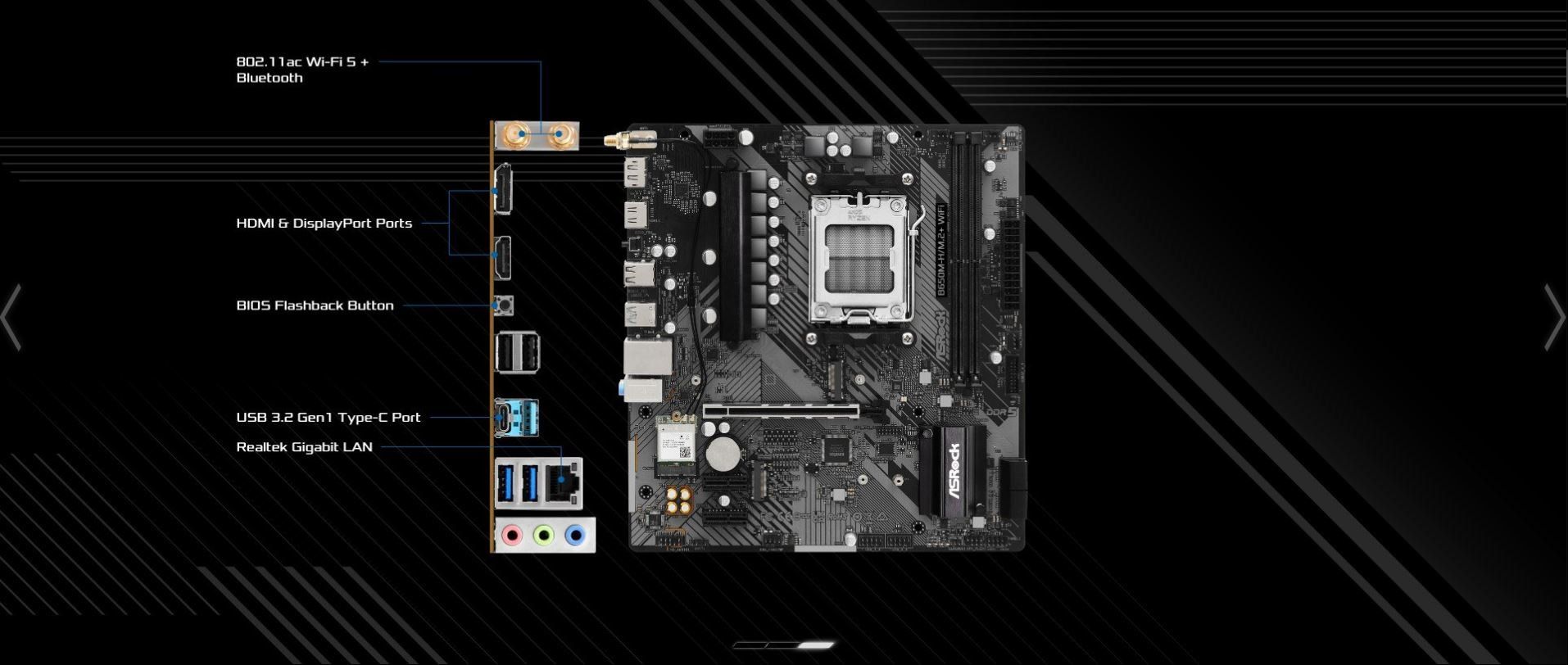

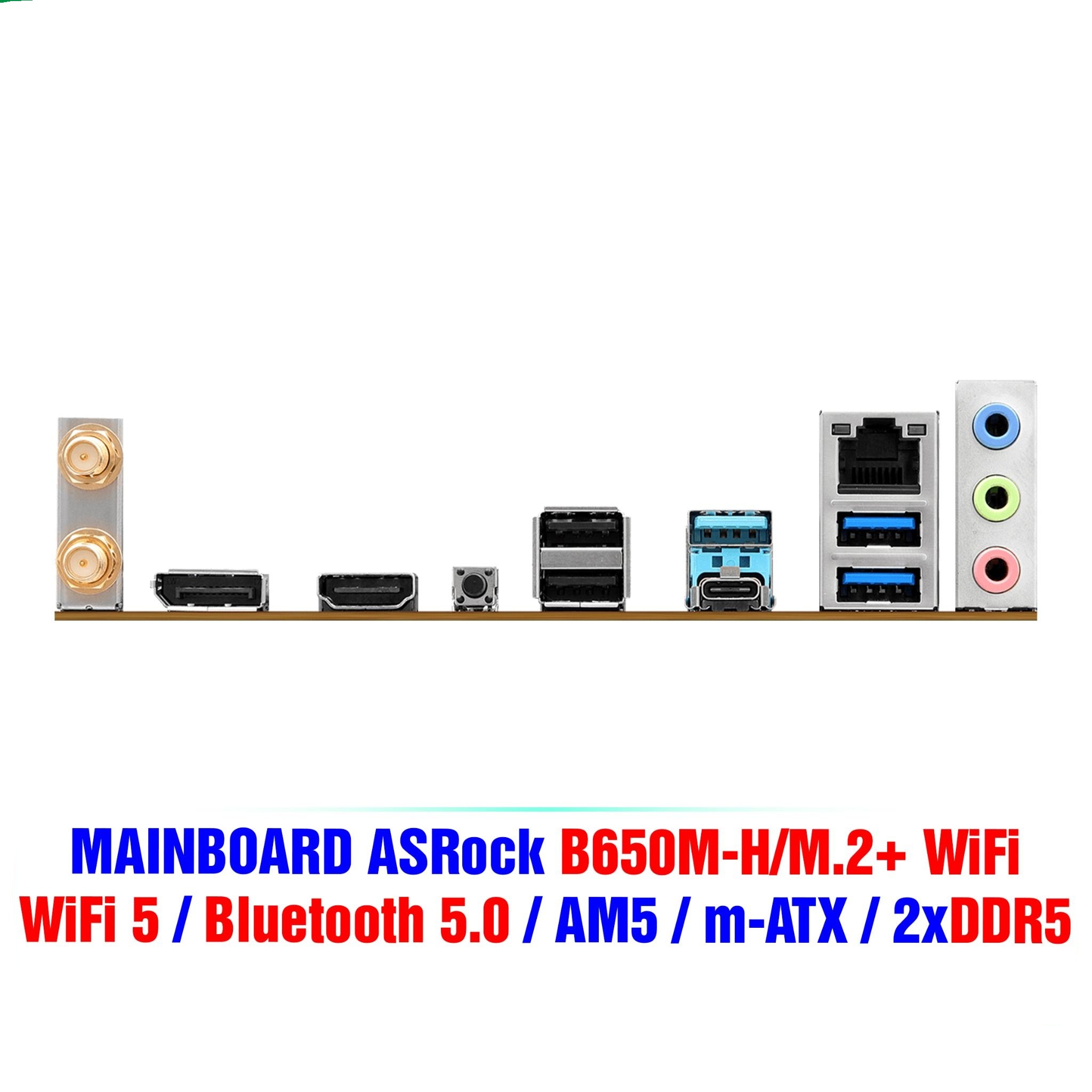

‎Rear Panel I/O	– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone

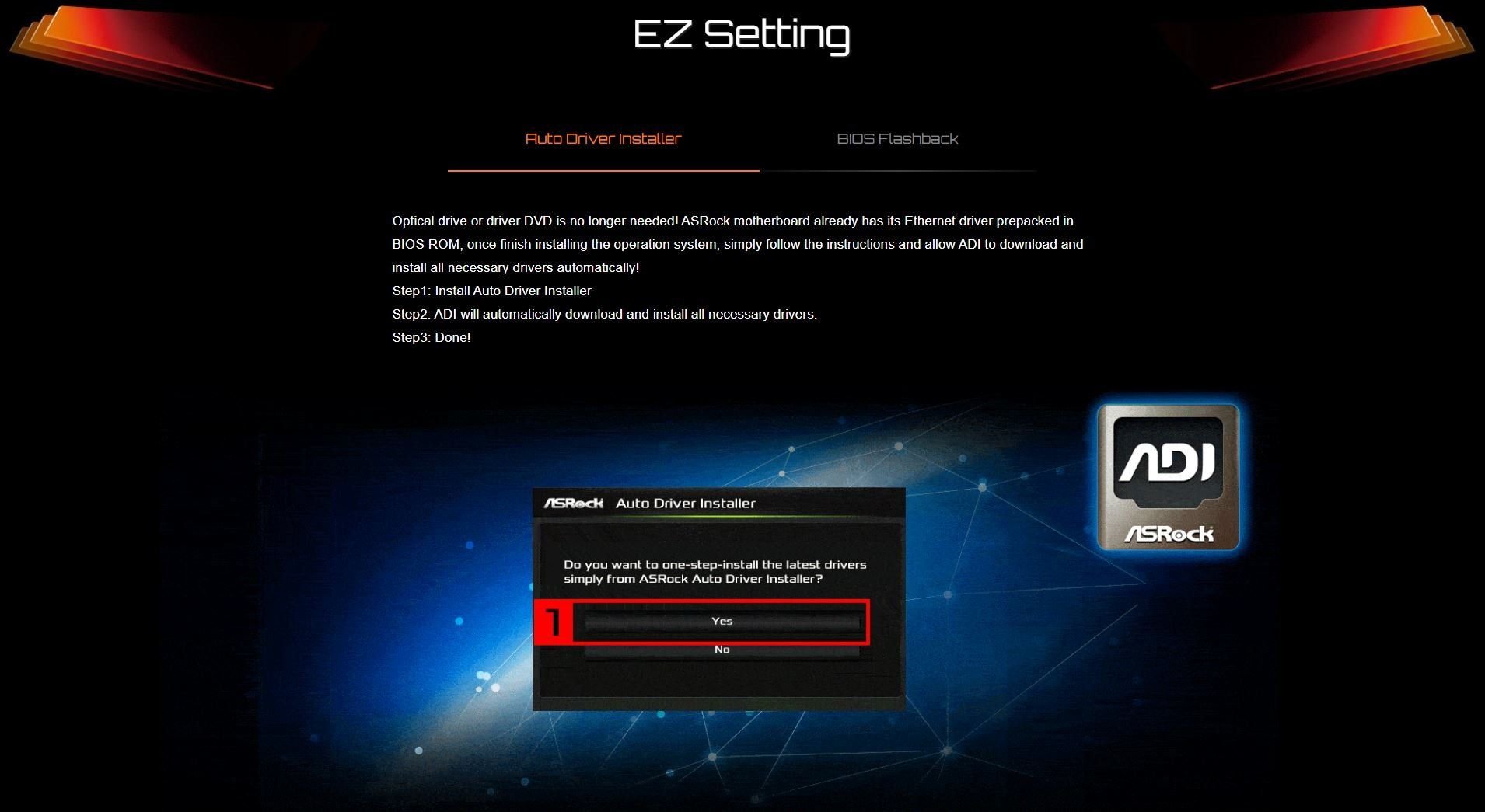

UEFI and Software	Software – ASRock Motherboard Utility (A-Tuning)* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	– 1 x I/O Shield – 2 x ASRock WiFi 2.4/5 GHz Antennas – 2 x SATA Data Cables – 2 x Screws for M.2 Sockets
Form Factor	– Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS	– Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
