DDR5 – MAINBOARD ASRock B850M PRO RS WiFi ( WiFi 6E / Bluetooth 5.2 / AM5 / m-ATX / 4xDDR5 )

Giá: 4,990,000 ₫

Thị trường: ~~5,890,000 ₫~~

Tiết kiệm: 900,000 ₫ (15%)

Hãng sản xuất: ASROCK
Model: B850M PRO RS WIFI
Hỗ trợ ram: DDR5
Hỗ trợ cpu: AMD Ryzen™ 9000, 8000 and 7000 (Socket AM5)
Bảo hành: 36 Tháng 1 đổi 1

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: Amd B850, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

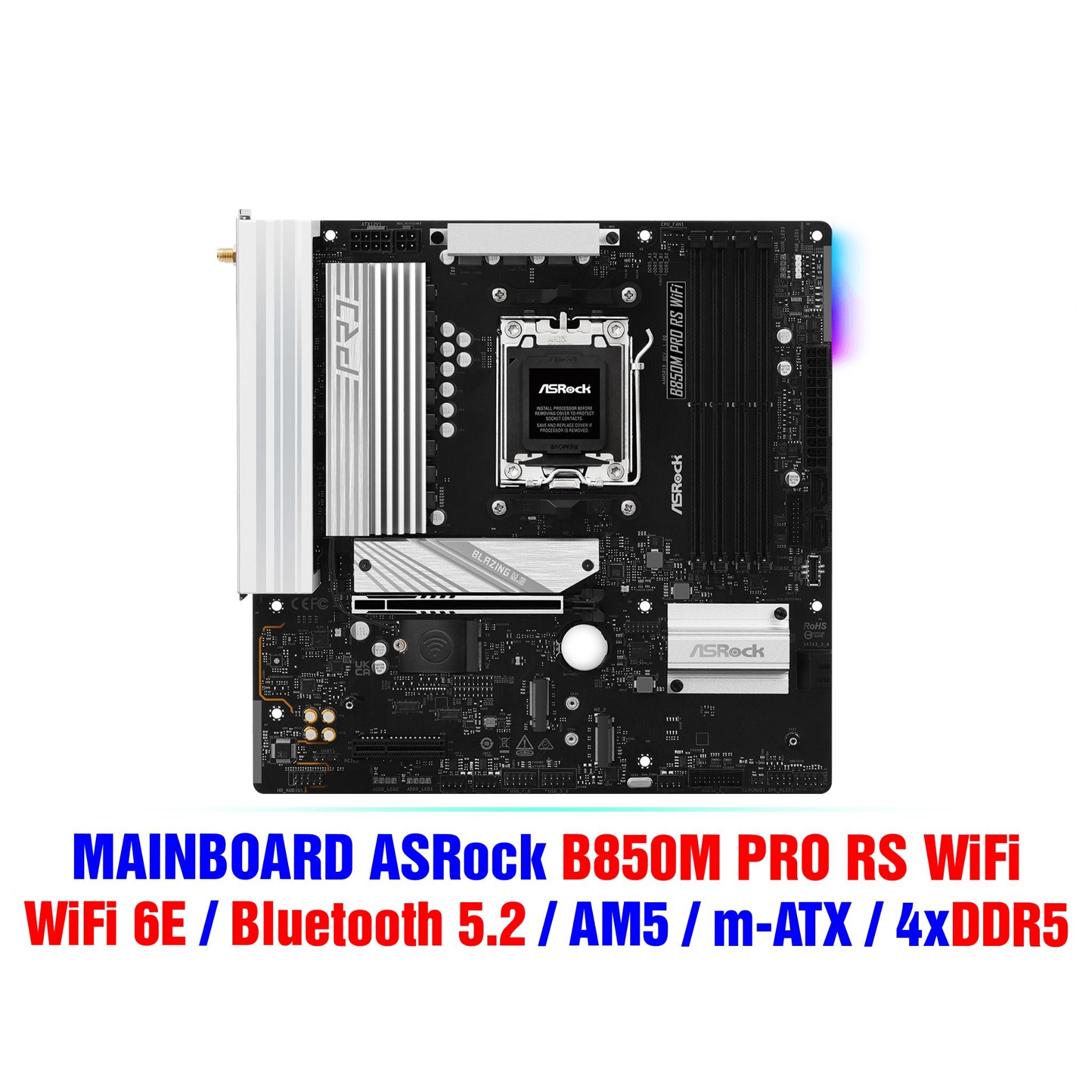

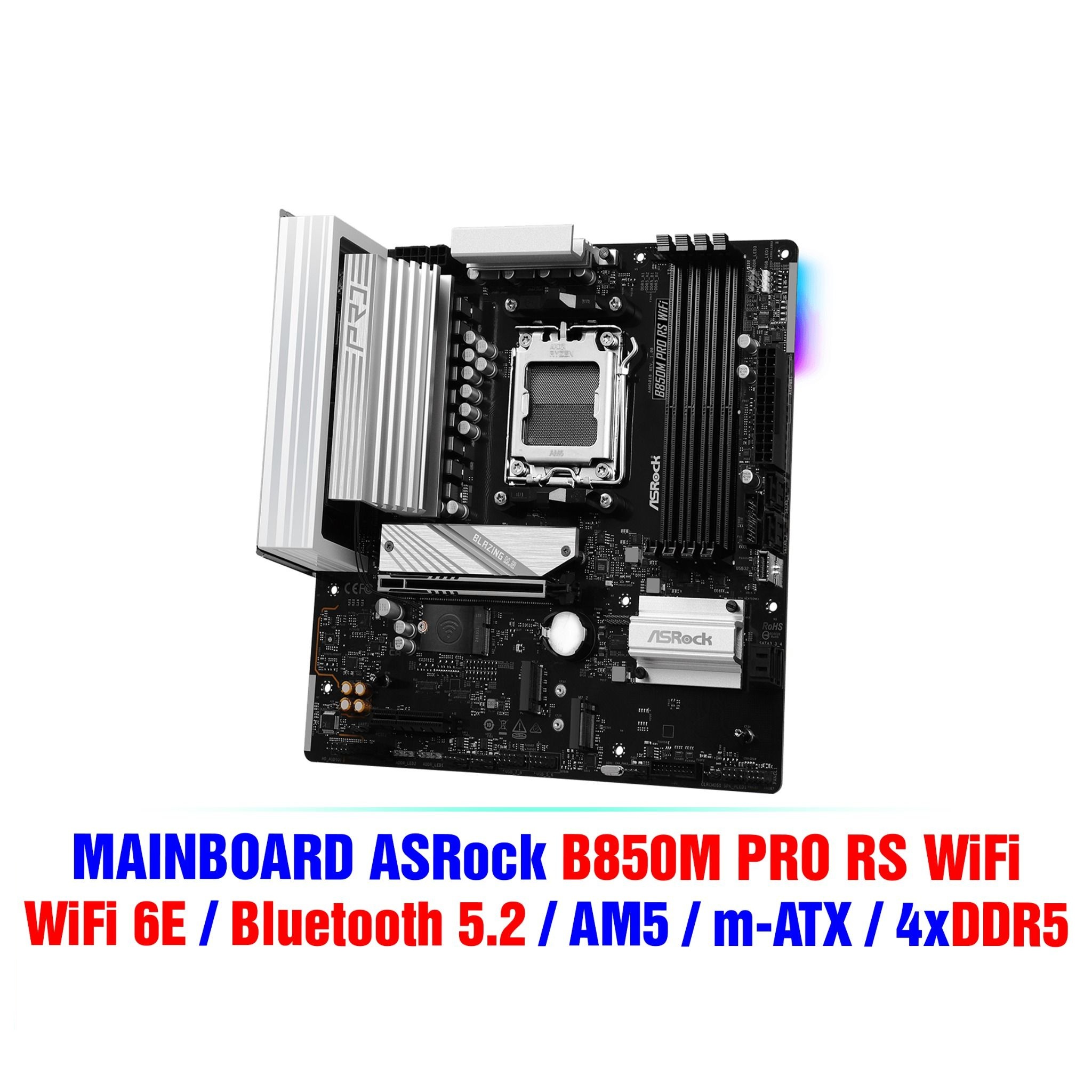

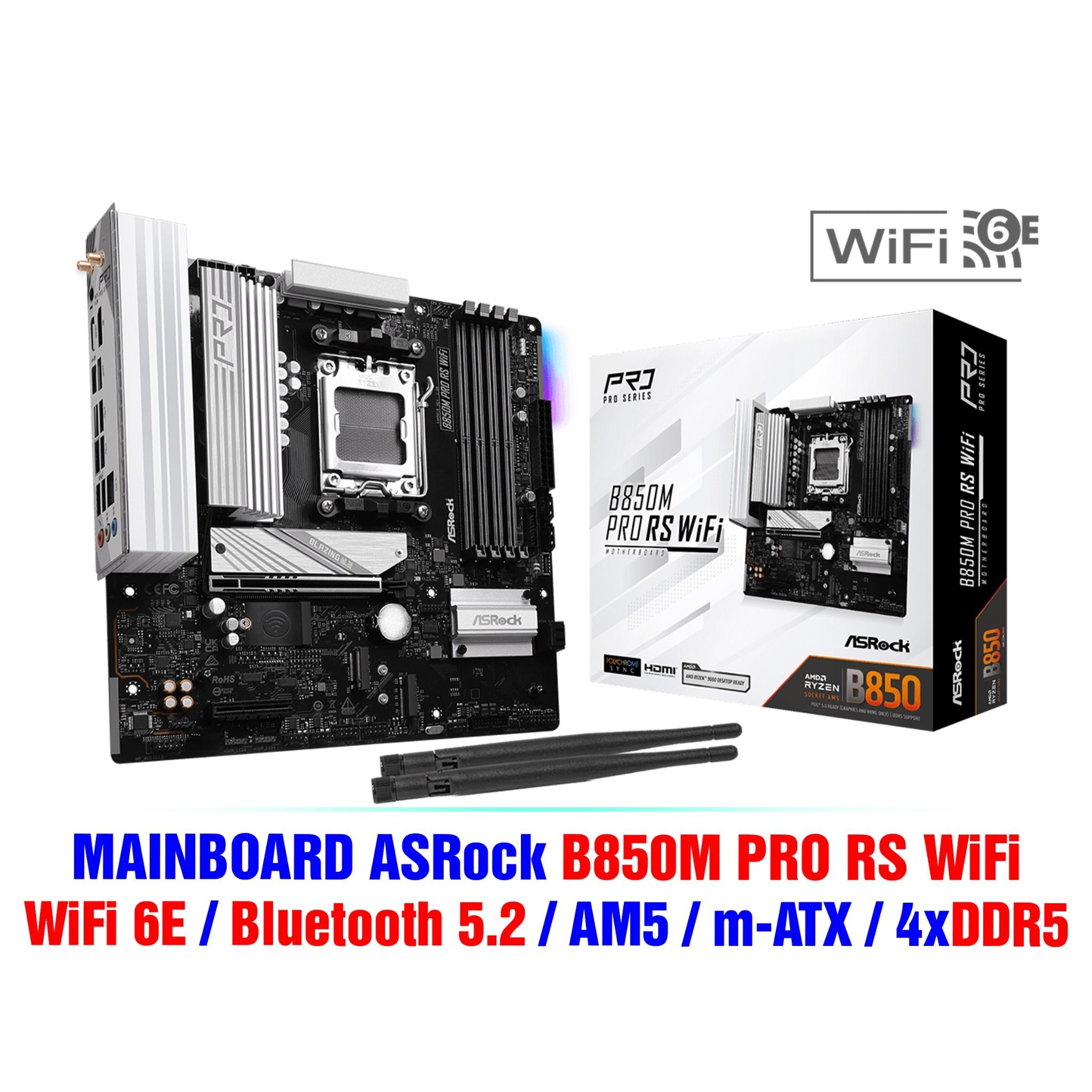

MAINBOARD ASRock B850M PRO RS WiFi ( WiFi 6E / Bluetooth 5.2 / AM5 / m-ATX / 4xDDR5 )

Unique Feature	Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 Rock-Solid Durability – 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC – Pre-Installed I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker
CPU	– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	– AMD B850
RAM	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless LAN	– 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 – Supports MU-MIMO *The Wi-Fi 6E module is supported by Microsoft Windows^® 11 only. There is no driver available for Windows^® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Slots	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) *PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks
Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled.
RAID	– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
USB	CPU: – 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
‎Connector	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)* – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W). CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.

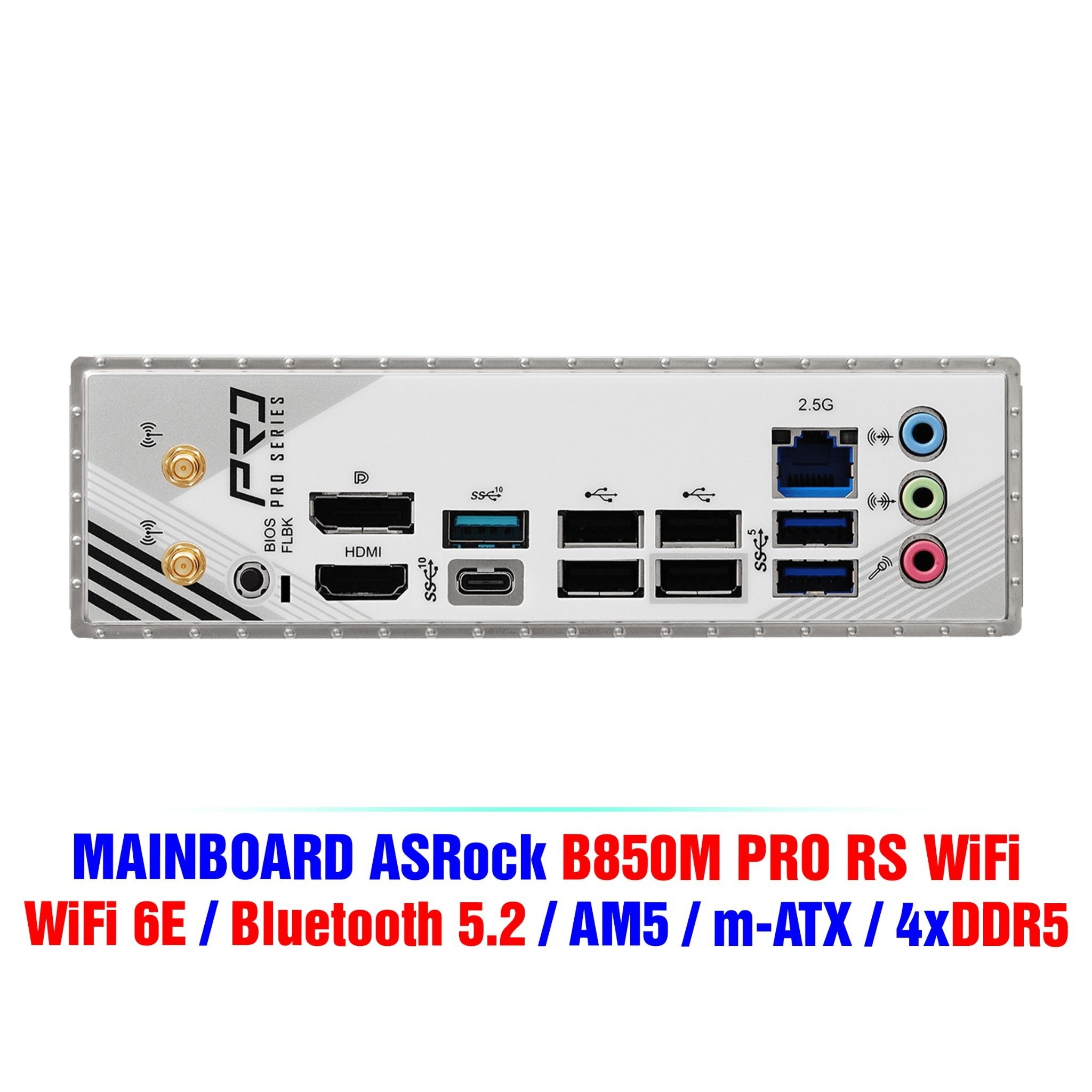

Rear Panel I/O	– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI and Software	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	– 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	– Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
