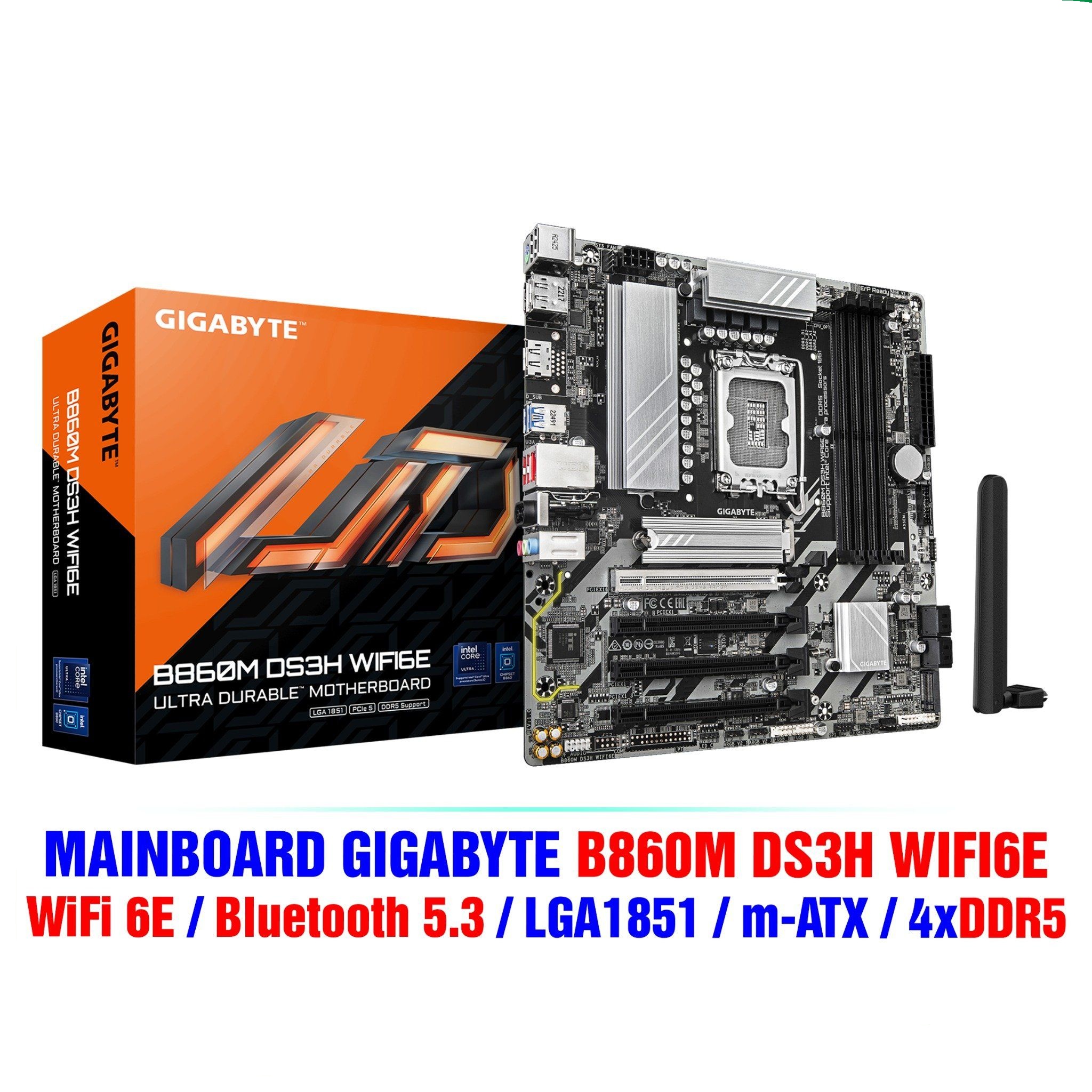

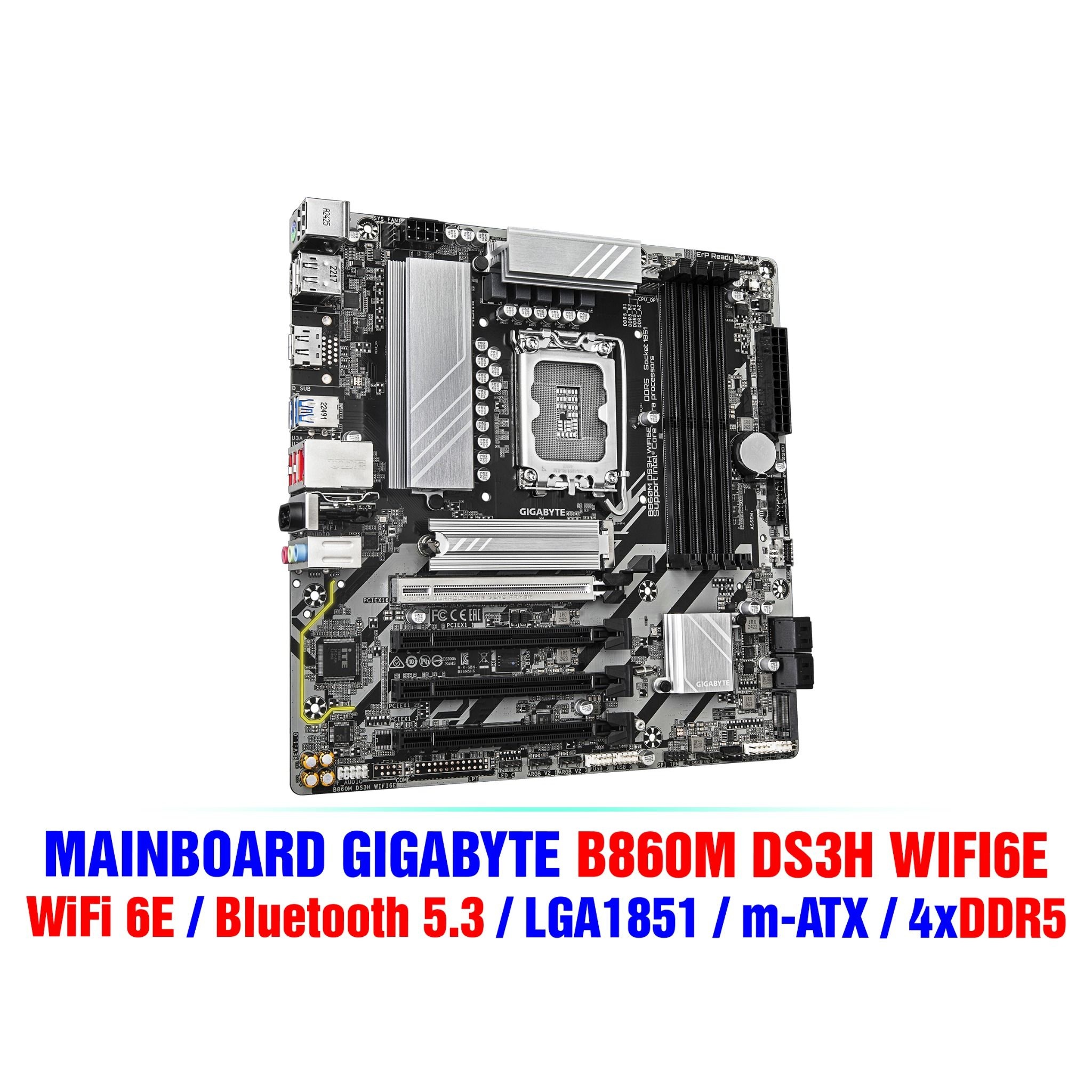

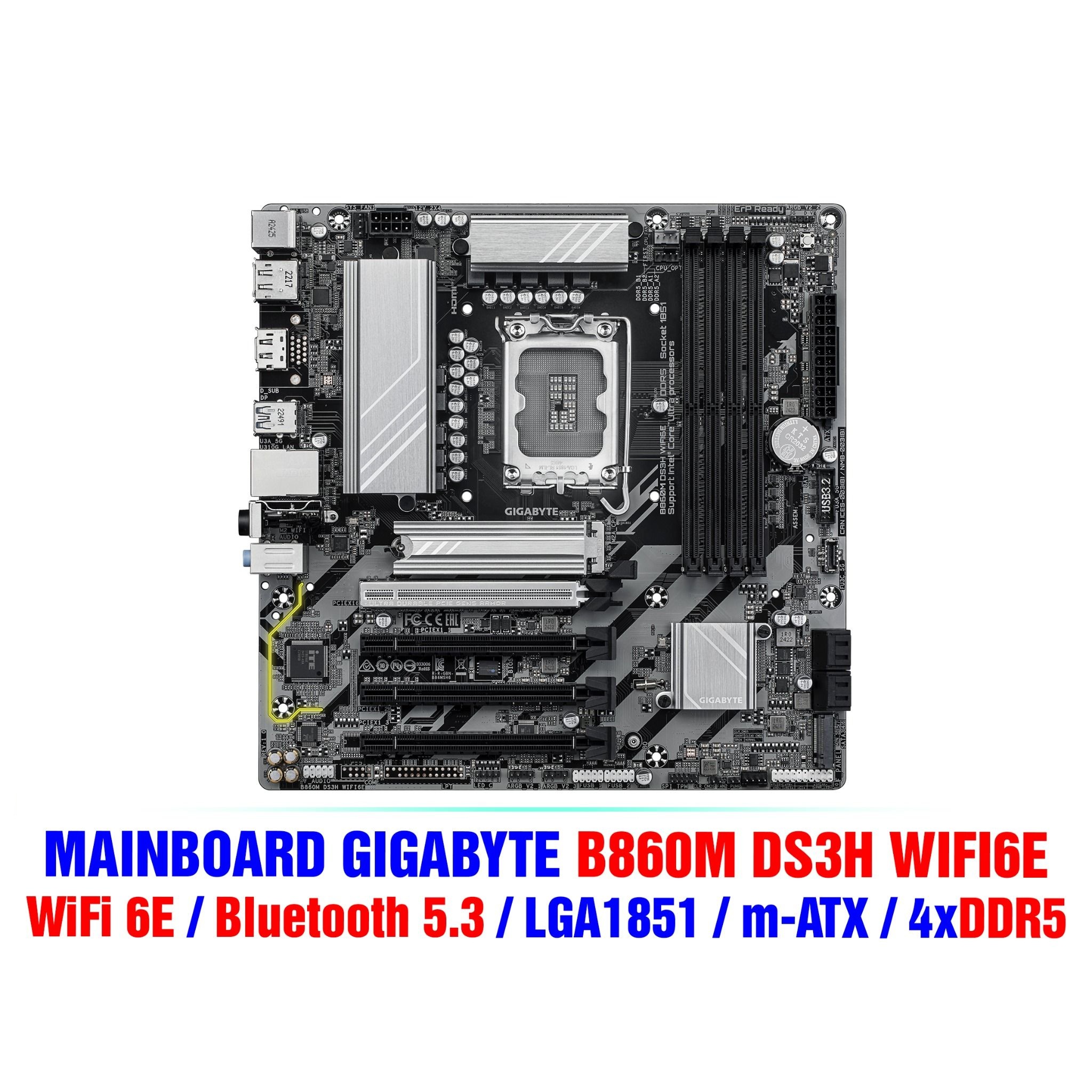

DDR5 – MAINBOARD GIGABYTE B860M DS3H WIFI6E ( WiFi 6E / Bluetooth 5.3 / LGA1851 / m-ATX / 4xDDR5 )

Giá: 4,590,000 ₫

Thị trường: ~~5,290,000 ₫~~

Tiết kiệm: 700,000 ₫ (13%)

Hãng sản xuất: GIGABYTE
Model: B860M DS3H WIFI 6E
Hỗ trợ ram: DDR5
Hỗ trợ cpu: Support for Intel® Core™ Ultra (LGA1851)
Bảo hành: 36 Tháng 1 đổi 1

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: Intel B860, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

MAINBOARD GIGABYTE B860M DS3H WIFI6E ( WiFi 6E / Bluetooth 5.3 / LGA1851 / m-ATX / 4xDDR5 )

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel® B860 Express Chipset
Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. – 2 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Storage Interface	CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

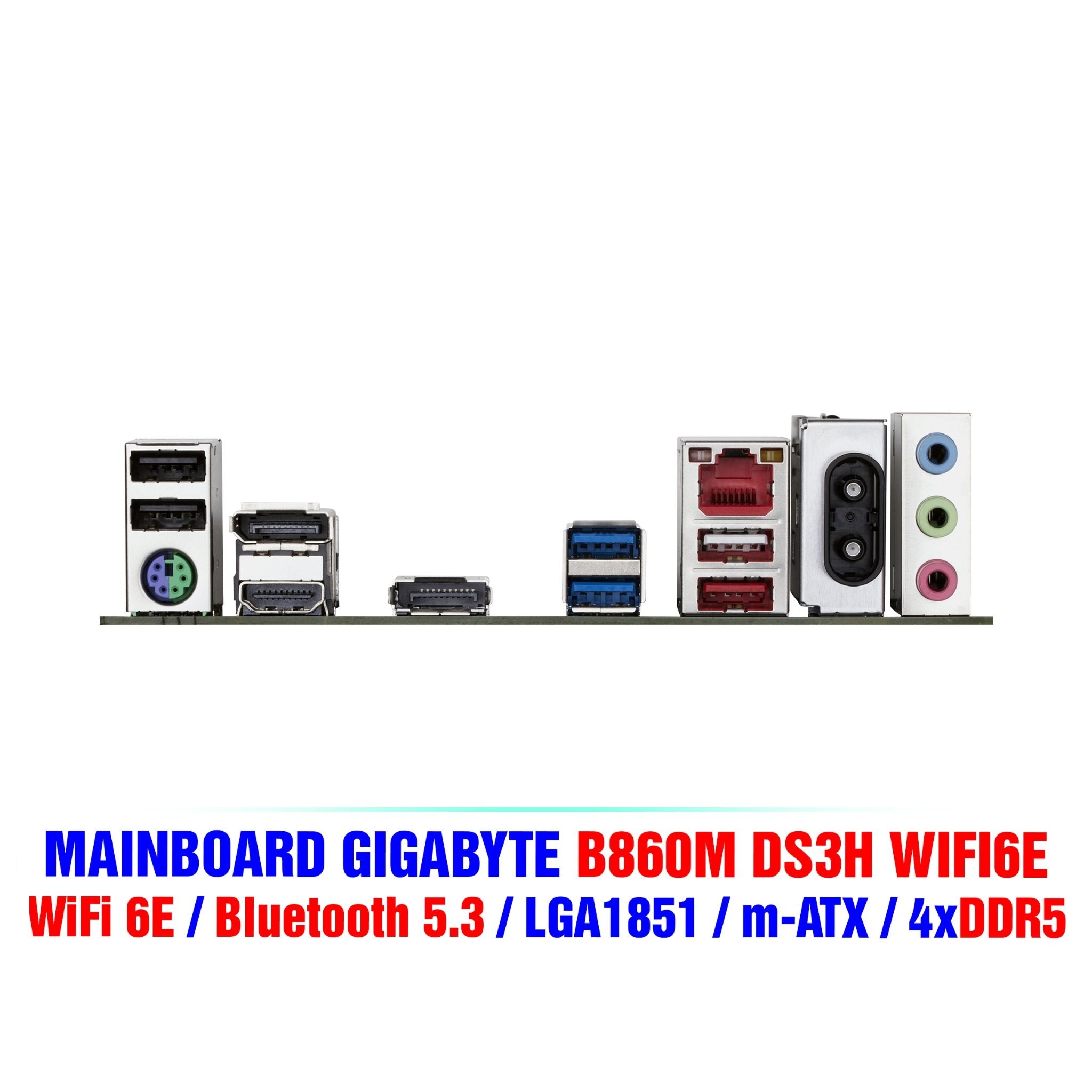

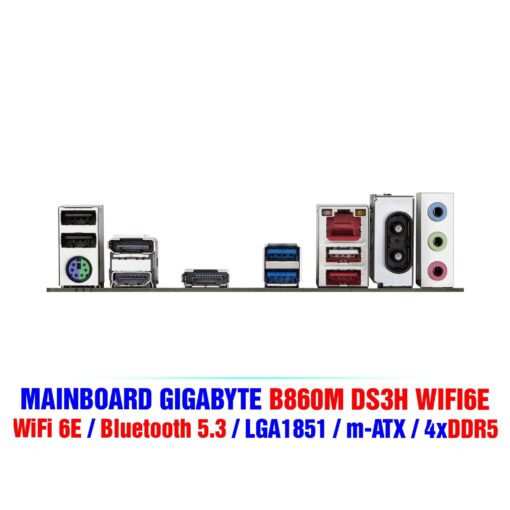

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11.
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
