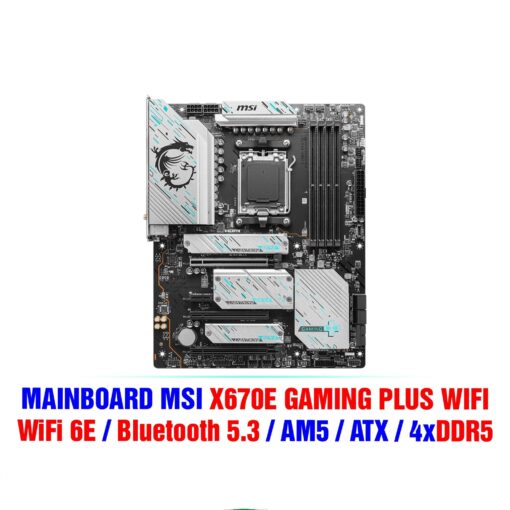

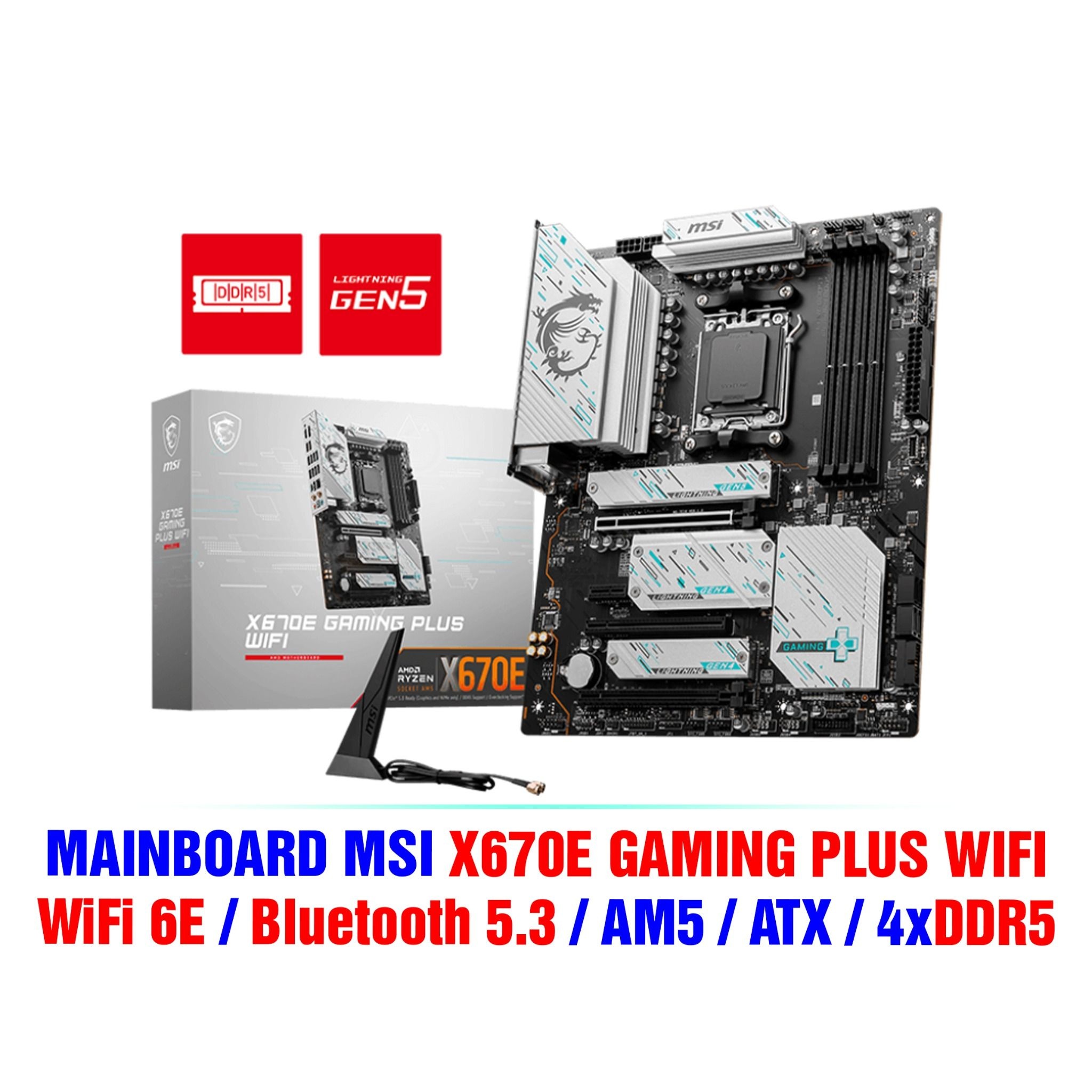

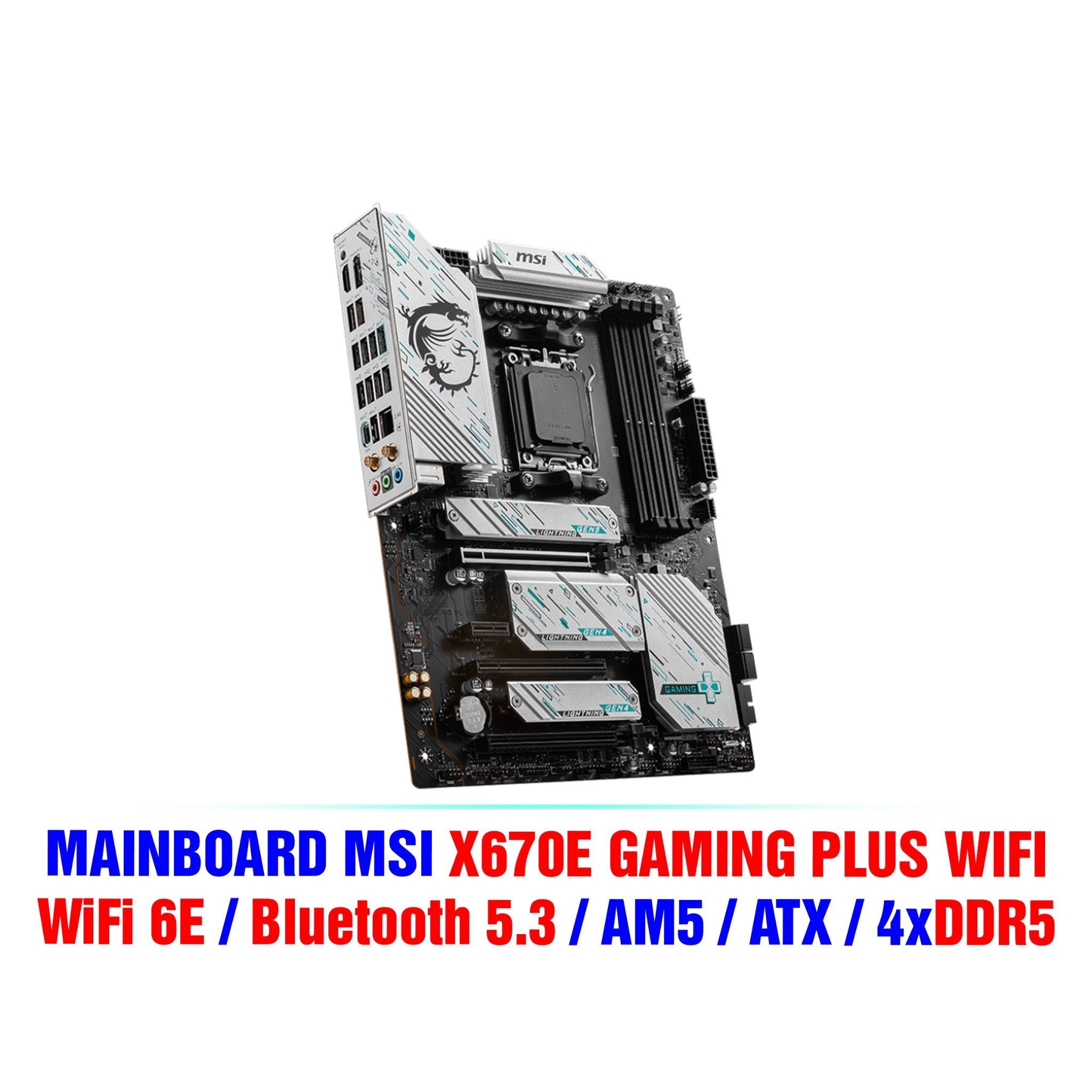

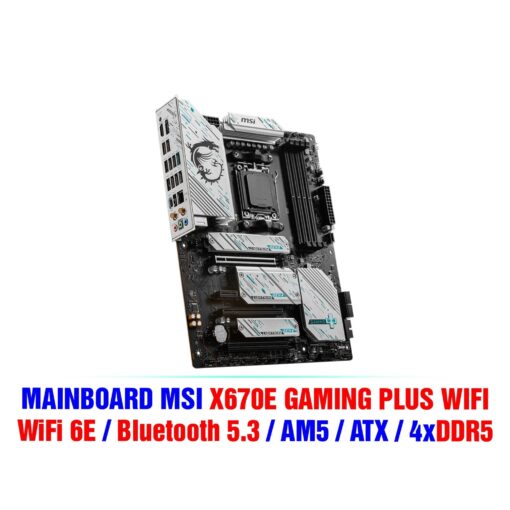

DDR5 – MAINBOARD MSI X670E GAMING PLUS WIFI ( WiFi 6E / Bluetooth 5.3 / AM5 / ATX / 4xDDR5 )

Giá: 7,490,000 ₫

Thị trường: ~~9,990,000 ₫~~

Tiết kiệm: 2,500,000 ₫ (25%)

Hãng sản xuất: MSI
Model: X670E Gaming Plus WIFI
Hỗ trợ ram: DDR5
Hỗ trợ cpu: AMD Ryzen™ 8000/ 7000 (AM5)
Bảo hành: 36 Tháng 1 đổi 1

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: Amd X670, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

MAINBOARD MSI X670E GAMING PLUS WIFI ( WiFi 6E / Bluetooth 5.3 / AM5 / ATX / 4xDDR5 )

CHIPSET

AMD X670

CPU SUPPORT

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

3x PCI-E x16 slot
Supports x16/x1/x4
• Supports x16/x1/x4 (For Ryzen™ 7000 Series processors)
• Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4/x1/x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

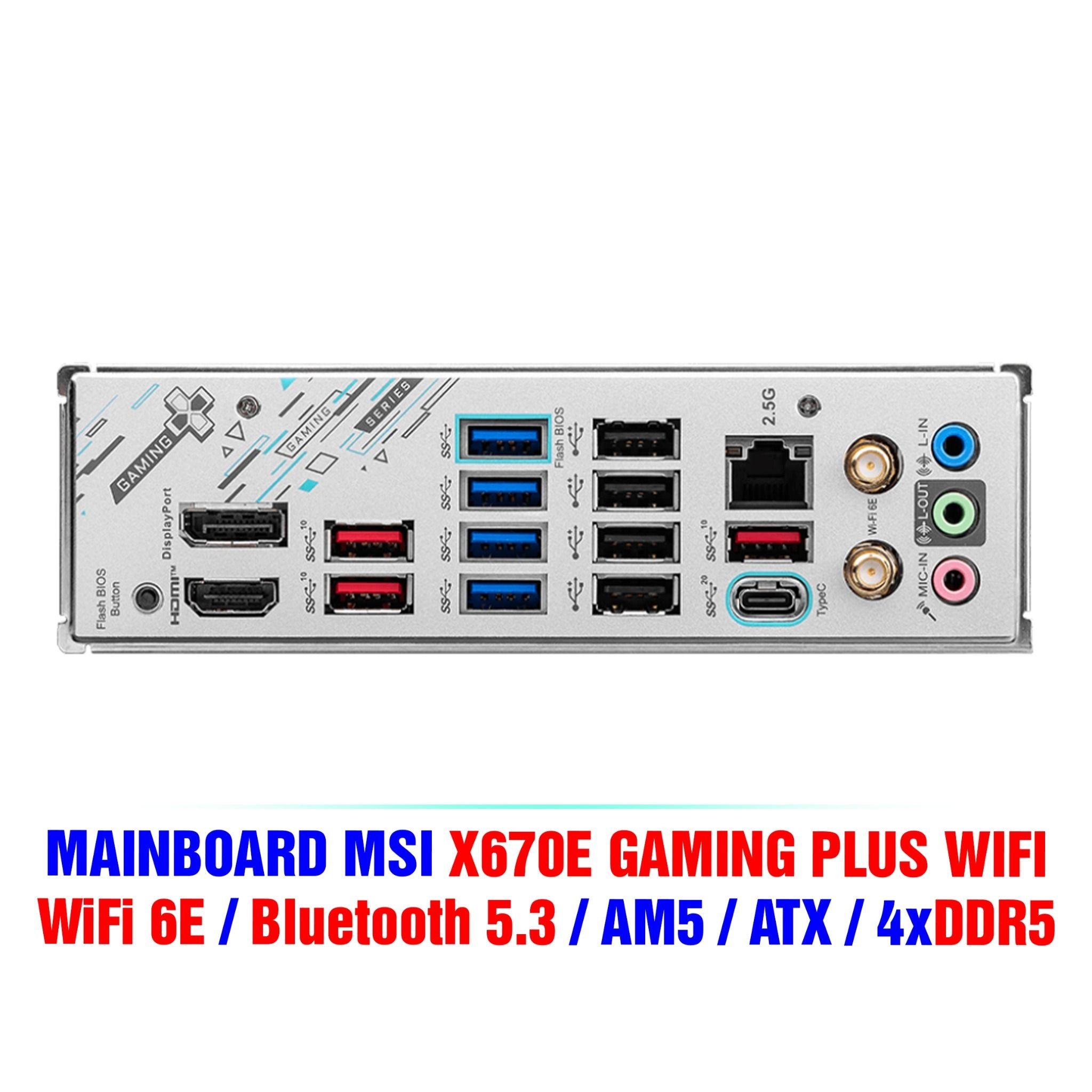

BACK PANEL PORTS
