MAINBOARD ASRock A520M/ac ( WiFi / Bluetooth 4.2 / AM4 / m-ATX / 2xDDR4 )

Giá: 1,590,000 ₫

Thị trường: ~~1,750,000 ₫~~

Tiết kiệm: 160,000 ₫ (9%)

Hãng sản xuất: ASRrock
Model: A520M/AC
Hỗ trợ ram: DDR4
Hỗ trợ cpu: Supports AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series (AM4)
Bảo hành: 36 Tháng 1 đổi 1

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: Amd A520, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

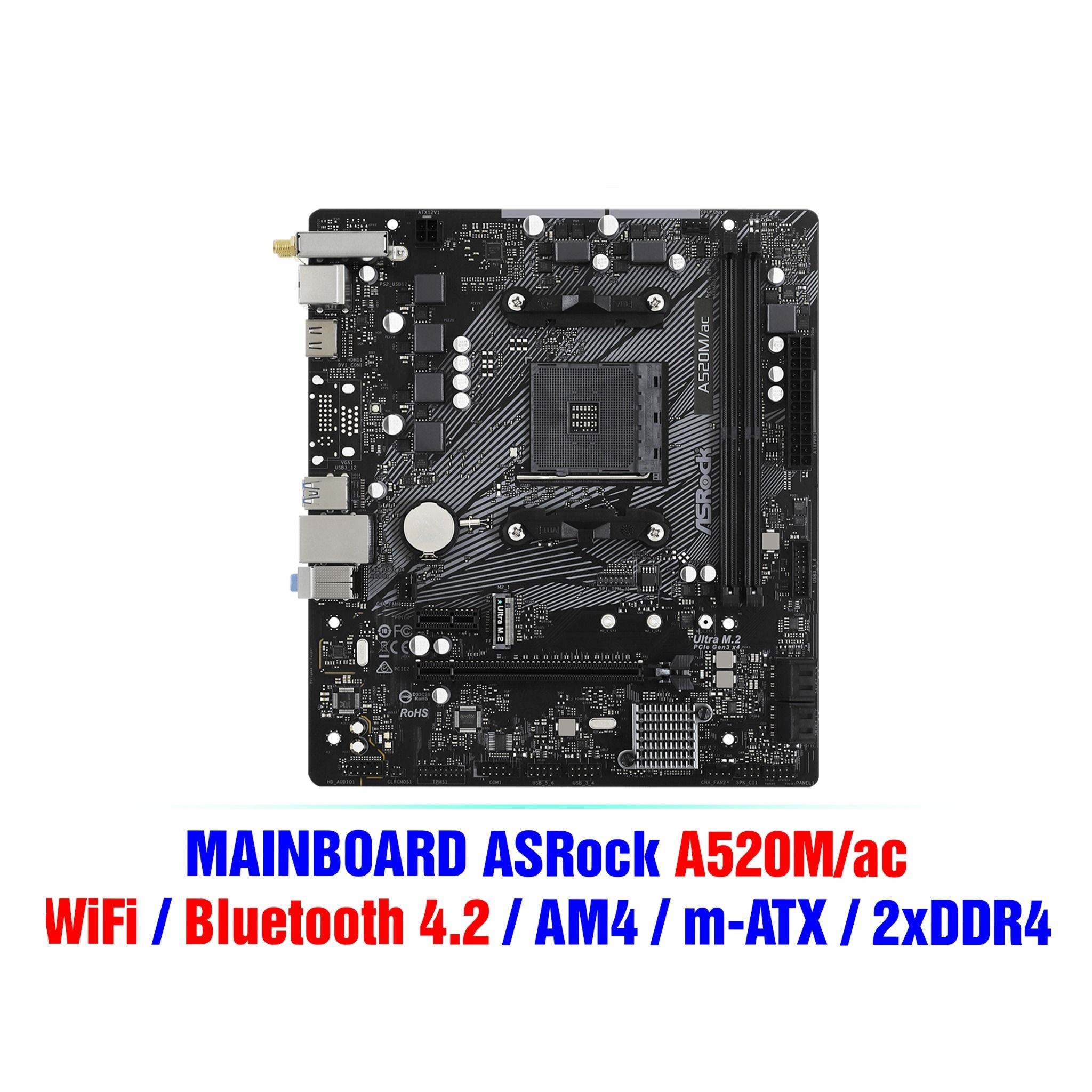

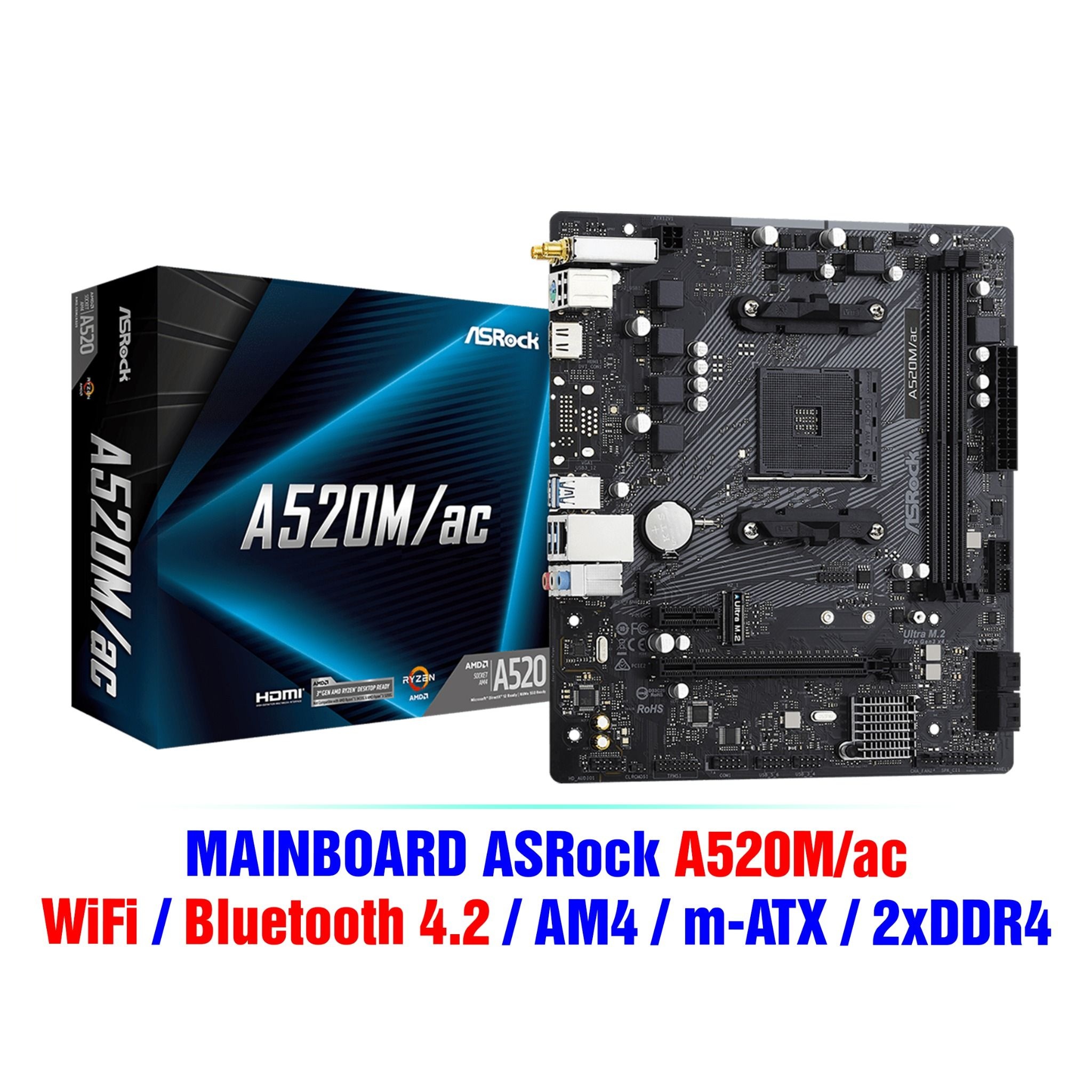

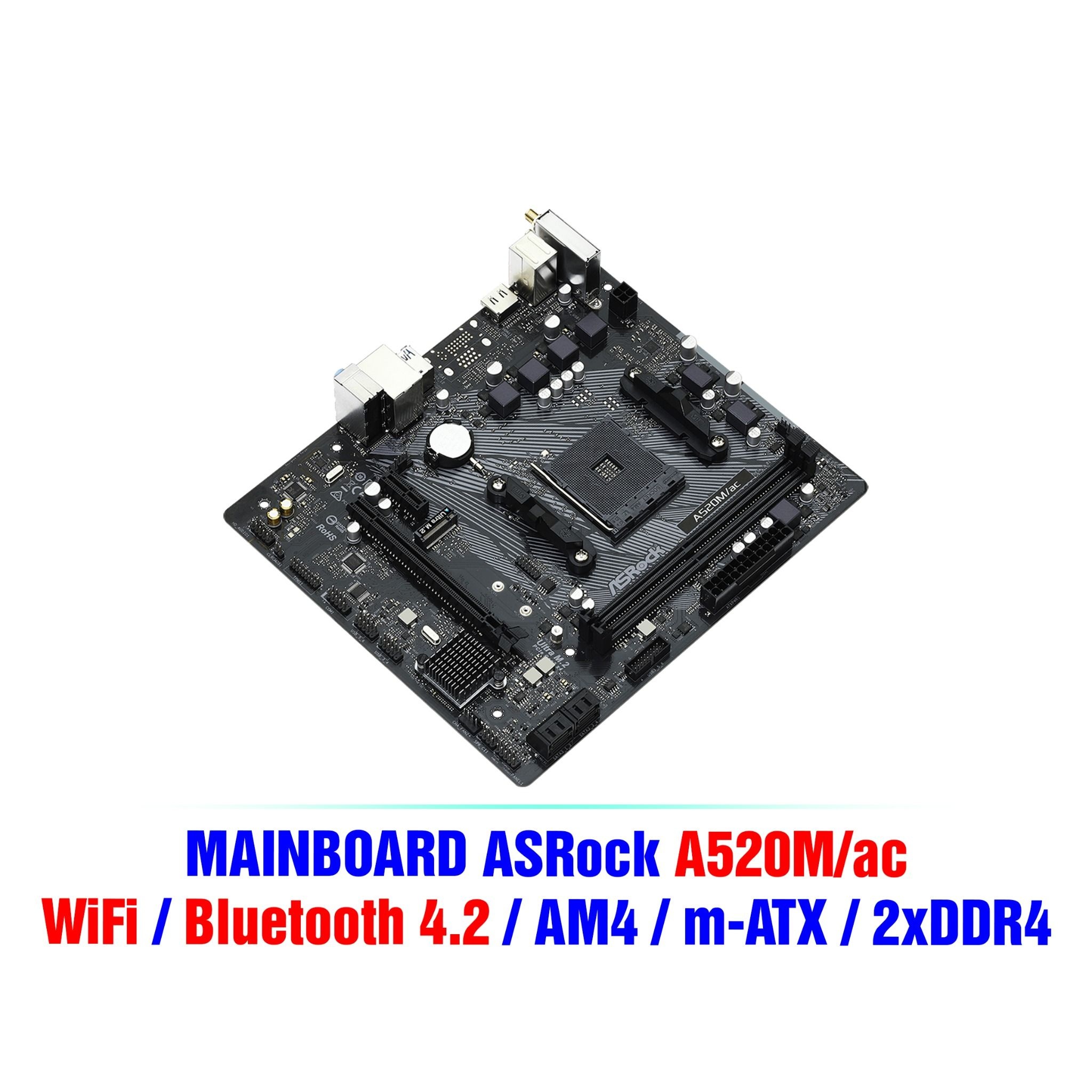

MAINBOARD ASRock A520M/ac ( WiFi / Bluetooth 4.2 / AM4 / m-ATX / 2xDDR4 )

Unique Feature	ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB Intel^® 802.11ac WiFi ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	– Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* – 6 Power Phase design *Please refer to CPU support list for details.
Chipset	– AMD A520
Memory	– Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – Max. capacity of system memory: 64GB** – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots For Ryzen Series APUs (Cezanne and Renoir), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support. For more details. Ryzen Series CPUs (Vermeer): Ryzen Series CPUs (Matisse): Ryzen Series APUs (Cezanne): Ryzen Series CPUs: SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Graphics	– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 Port – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Audio	– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) – Supports Surge Protection
LAN	– PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Wireless LAN	– Intel^® 802.11ac WiFi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots	– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* – 1 x PCI Express 3.0 x1 Slot – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) *Supports NVMe SSD as boot disks
Storage	CPU: – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: – 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon™ 3000G Processors Supports ASRock U.2 Kit
RAID	– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Connector	– 1 x SPI TPM Header – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

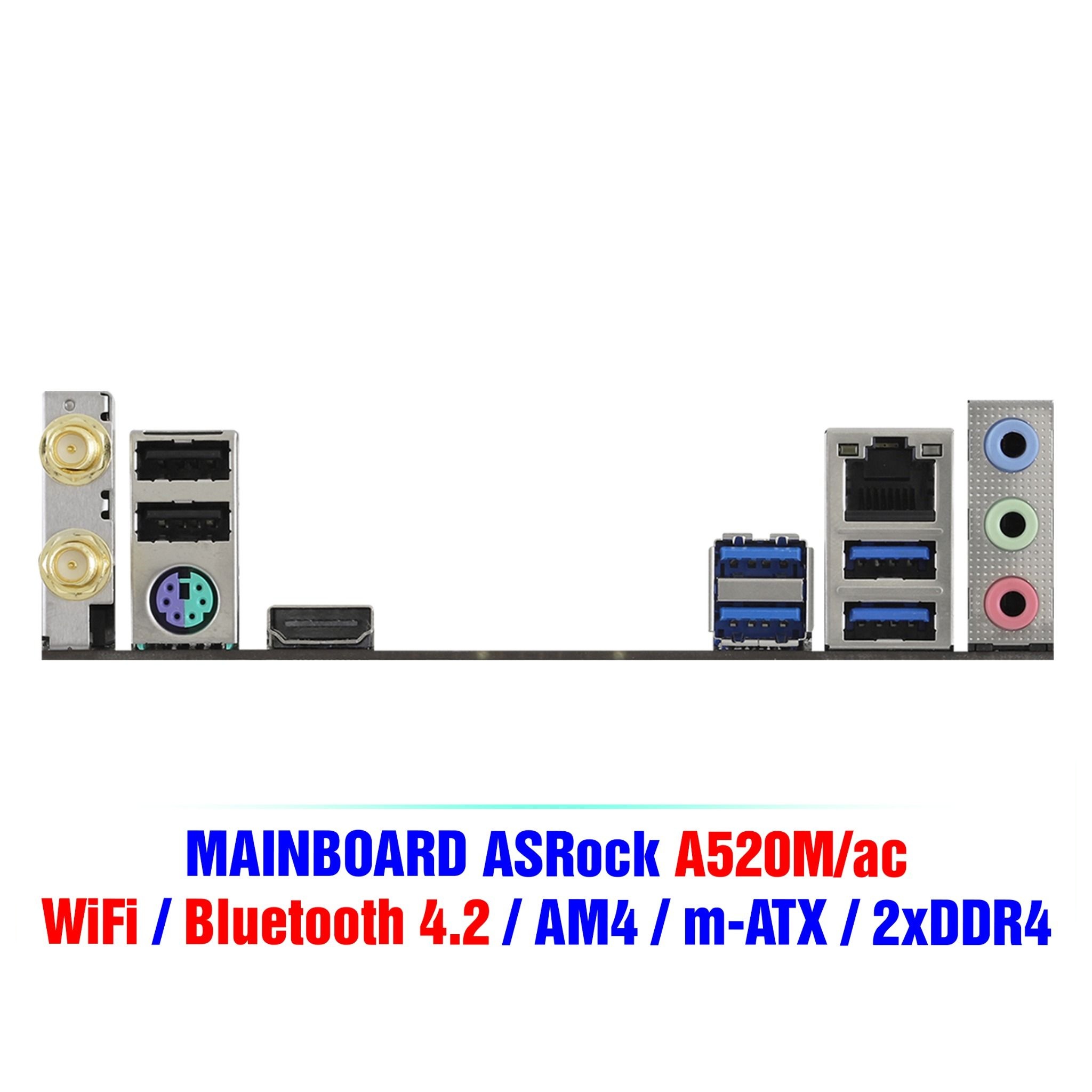

‎Rear Panel I/O	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI and Software	Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories	– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5 GHz Antennas – 1 x Screw for M.2 Socket
Hardware Monitor	– Temperature Sensing: CPU, Chassis – Fan Tachometer: CPU, Chassis Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans – Fan Multi-Speed Control: CPU, Chassis Fans – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	– Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm – Solid Capacitor design
OS	– Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
