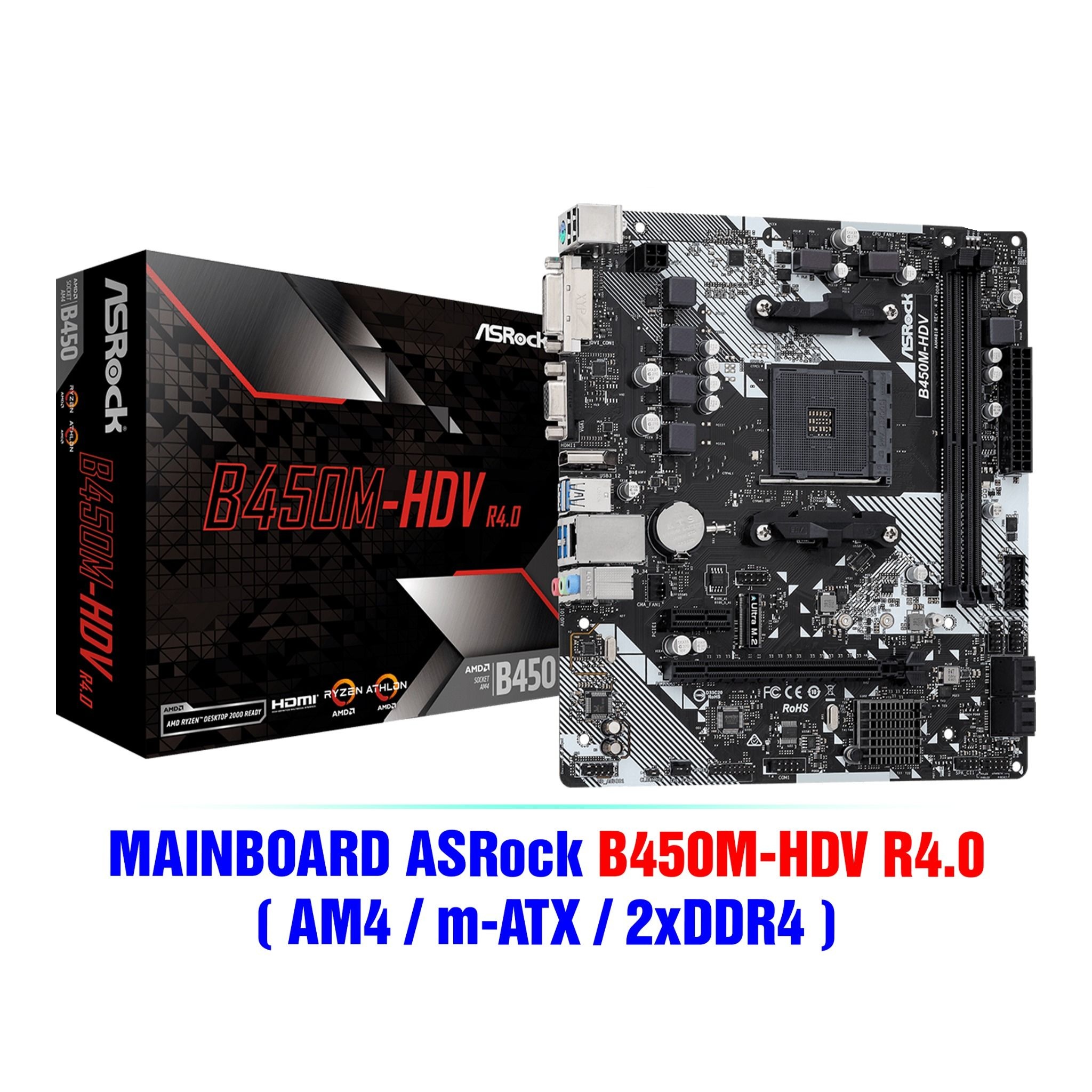

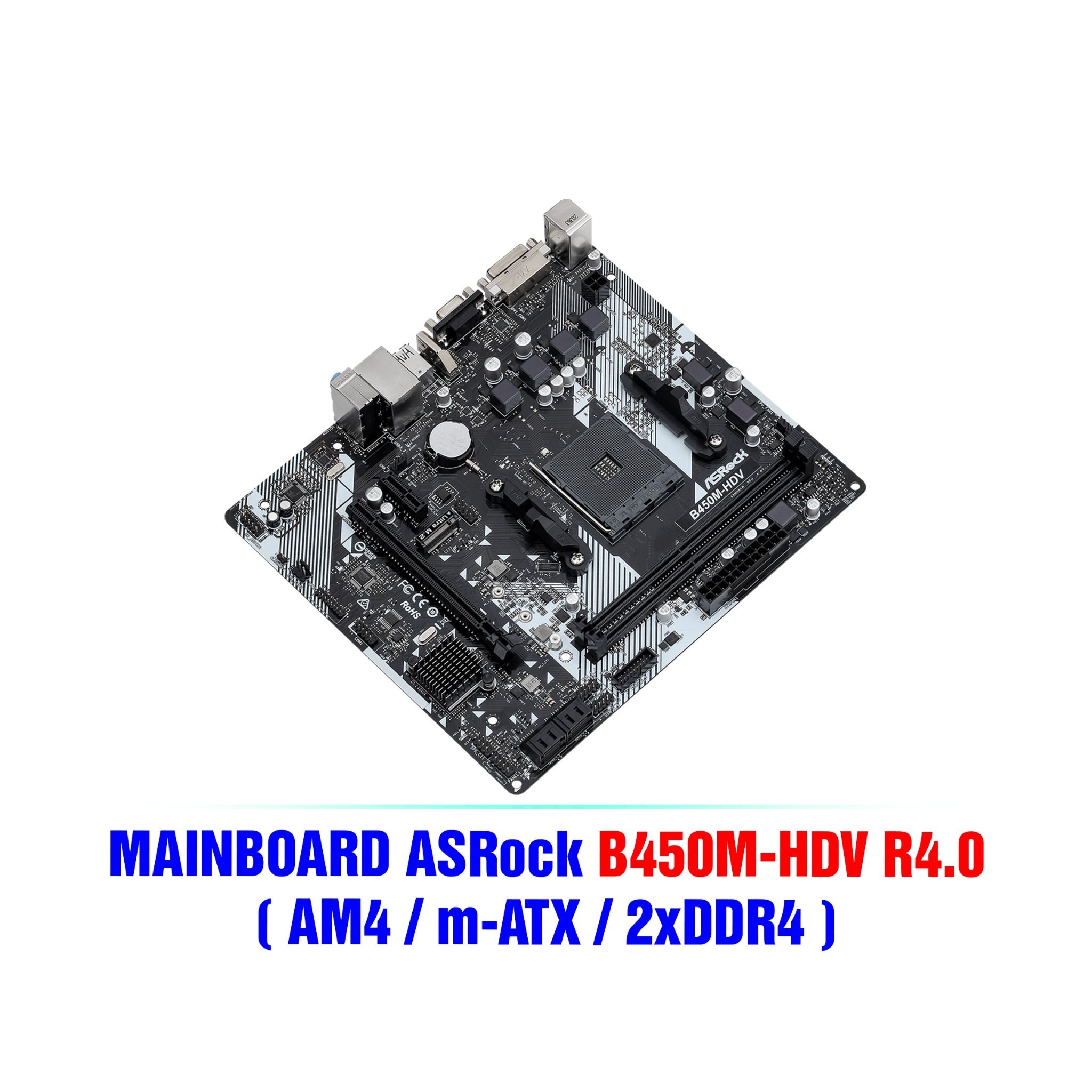

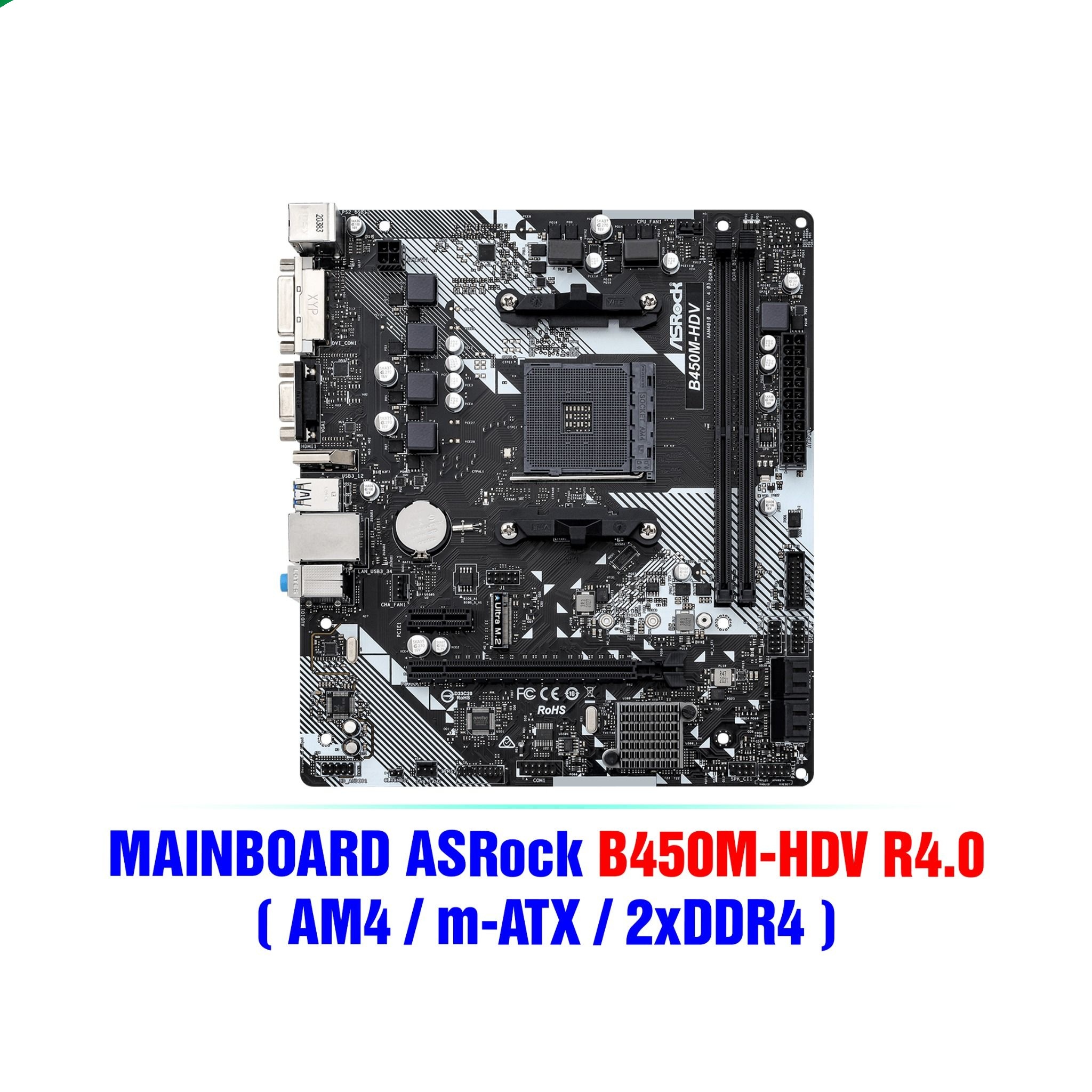

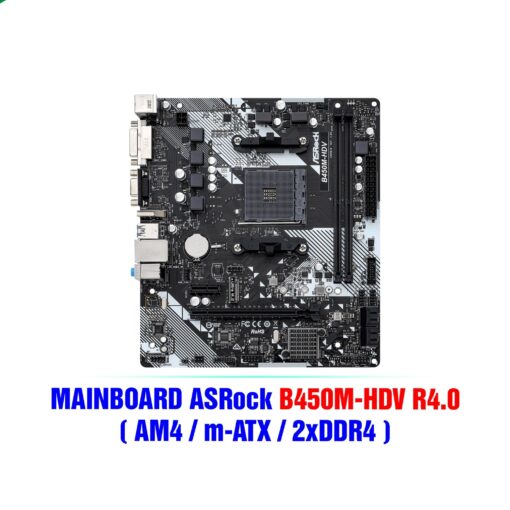

MAINBOARD ASRock B450M-HDV R4.0 ( AM4 / m-ATX / 2xDDR4 )
Giá:
1,380,000 ₫
Thị trường:
1,790,000 ₫
Tiết kiệm:
410,000 ₫ (23%)
- Hãng sản xuất: ASROCK
- Model: B450M-HDV R4.0
- Hỗ trợ ram: DDR4
- Hỗ trợ cpu: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series (AM4)
- Bảo hành: 36 Tháng 1 Đổi 1
MAINBOARD ASRock B450M-HDV R4.0 ( AM4 / m-ATX / 2xDDR4 )
|
Unique Feature
|
ASRock Super Alloy
– High Density Glass Fabric PCB – Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
CPU
|
– Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
– 6 Power Phase design – Supports CPU up to 105W |
|
Chipset
|
– AMD Promontory B450
|
|
Memory
|
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 64GB* – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support. Ryzen Series CPUs (Vermeer): Ryzen Series CPUs (Matisse): Ryzen Series APUs (Cezanne): Ryzen Series APUs (Renoir): Ryzen Series CPUs (Pinnacle Ridge): Ryzen Series CPUs (Picasso): Ryzen Series CPUs (Summit Ridge): Ryzen Series CPUs (Raven Ridge): SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
|
BIOS
|
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – DRAM Voltage multi-adjustment |
|
Graphics
|
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Three graphics output options: D-Sub, DVI-D and HDMI – Supports Triple Monitor – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) – Supports HDCP 1.4 with DVI-D and HDMI Ports – Supports 4K Ultra HD (UHD) playback with HDMI Port *Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed. |
|
Audio
|
– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection |
|
LAN
|
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
|
Slots
|
AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Picasso, Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* – 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks
|
|
Storage
|
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)* *Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit |
|
Connector
|
– 1 x COM Port Header
– 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. |
|

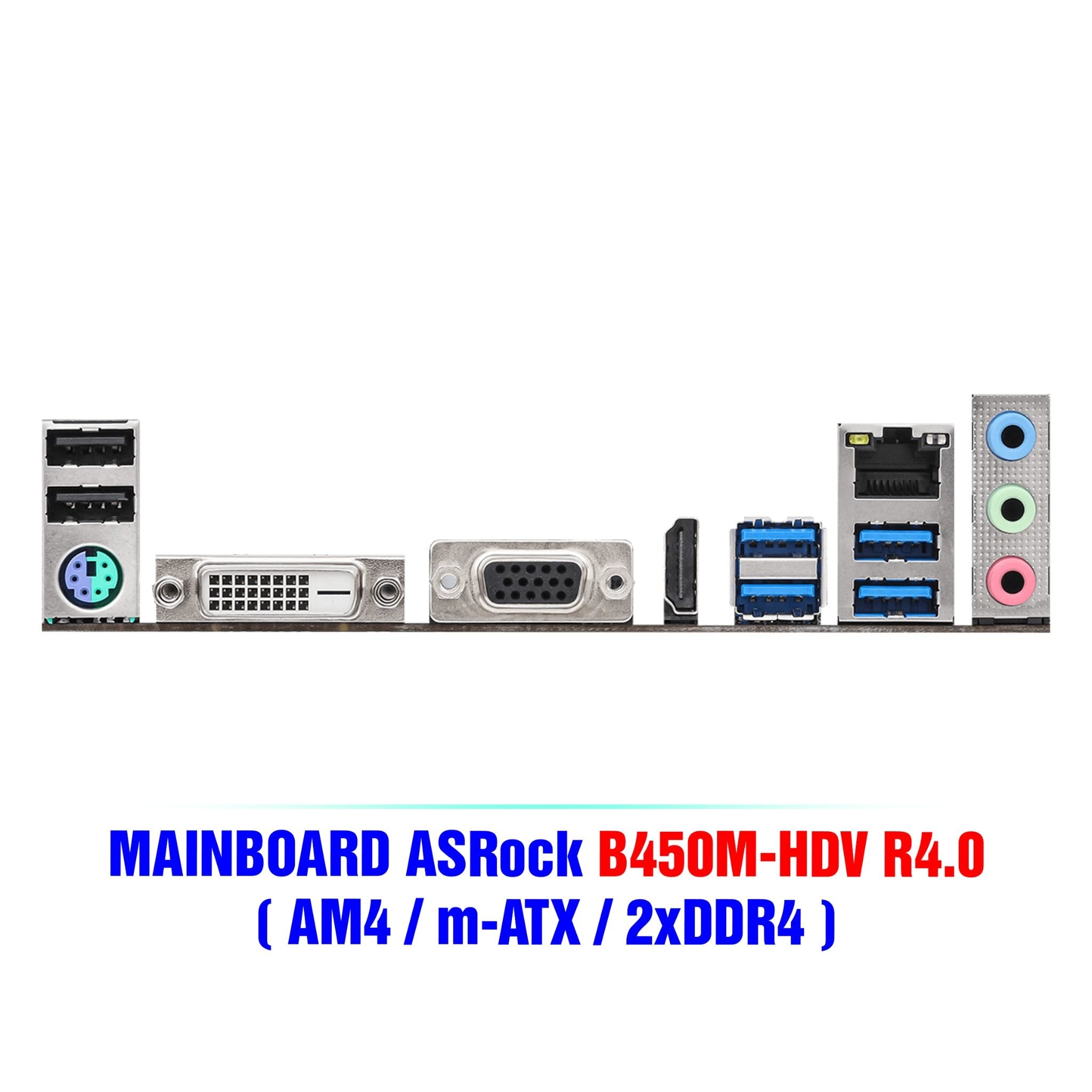

Rear Panel I/O
|
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Software and UEFI
|
Software
– ASRock A-Tuning – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Support CD
|
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
|
Accessories
|
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables – 1 x Screw for M.2 Socket |
|
Hardware Monitor
|
– CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer – CPU/Chassis Quiet Fan – CPU/Chassis Fan multi-speed control – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, Vcore |
|
Form Factor
|
– Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
– Solid Capacitor design |
|
OS
|
– Microsoft® Windows® 10 64-bit / 11 64-bit*
*Summit Ridge do not officially support Windows® 11.
|
|
Certifications
|
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) |
