-31%

MAINBOARD ASROCK B760M PRO RS/D4 WIFI (WIFI 6E / LGA1700 / M-ATX / 4XDDR4)

Giá: 3,090,000 ₫

Thị trường: ~~4,490,000 ₫~~

Tiết kiệm: 1,400,000 ₫ (31%)

Hãng sản xuất: Asrock
Model: B760M PRO RS WIFI
Hỗ trợ ram: DDR4
Hỗ trợ cpu: Thế hệ 12th – 13th – 14th (Mới Nhất)
Bảo hành: 36 Tháng

Hết hàng

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp

Danh mục: Intel B760, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

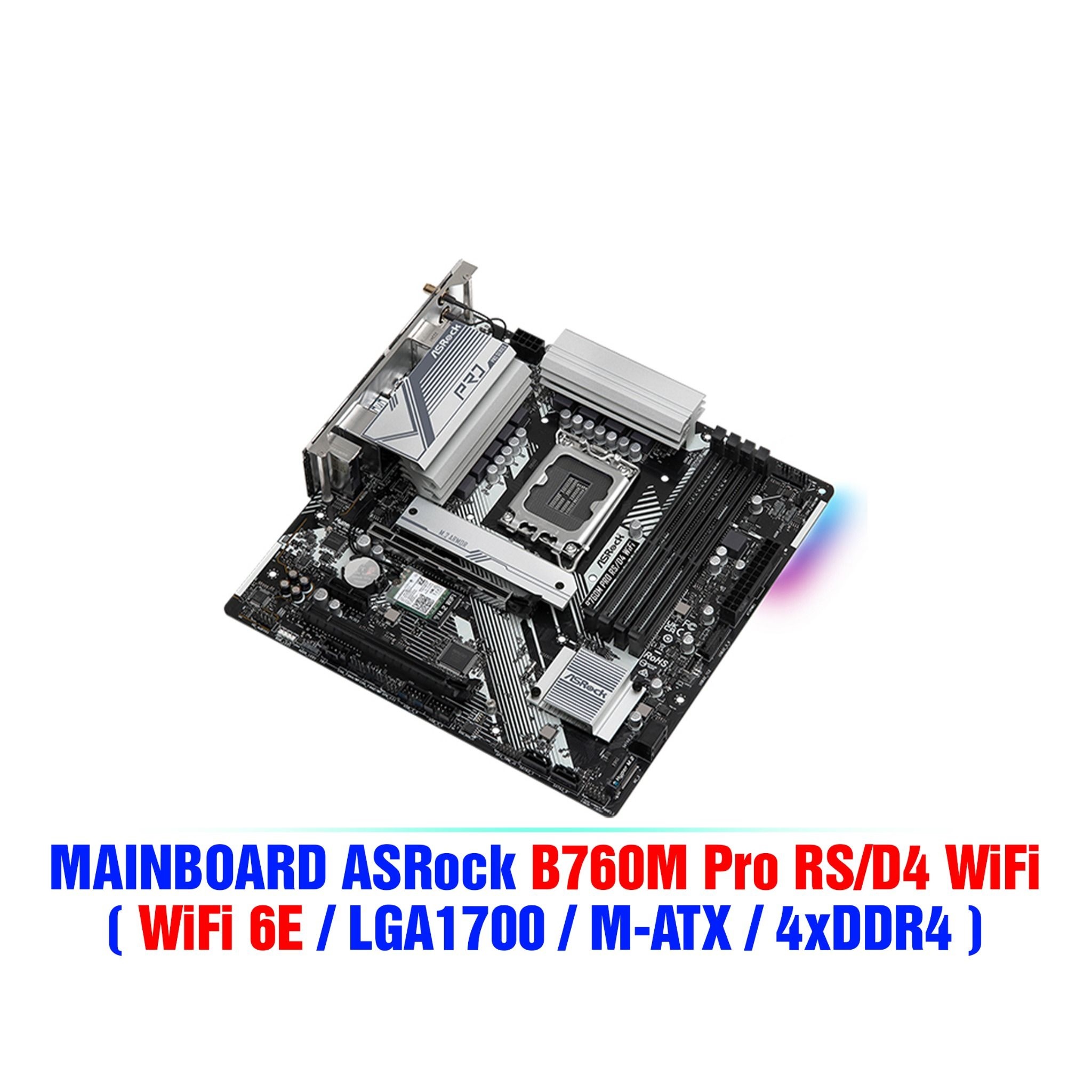

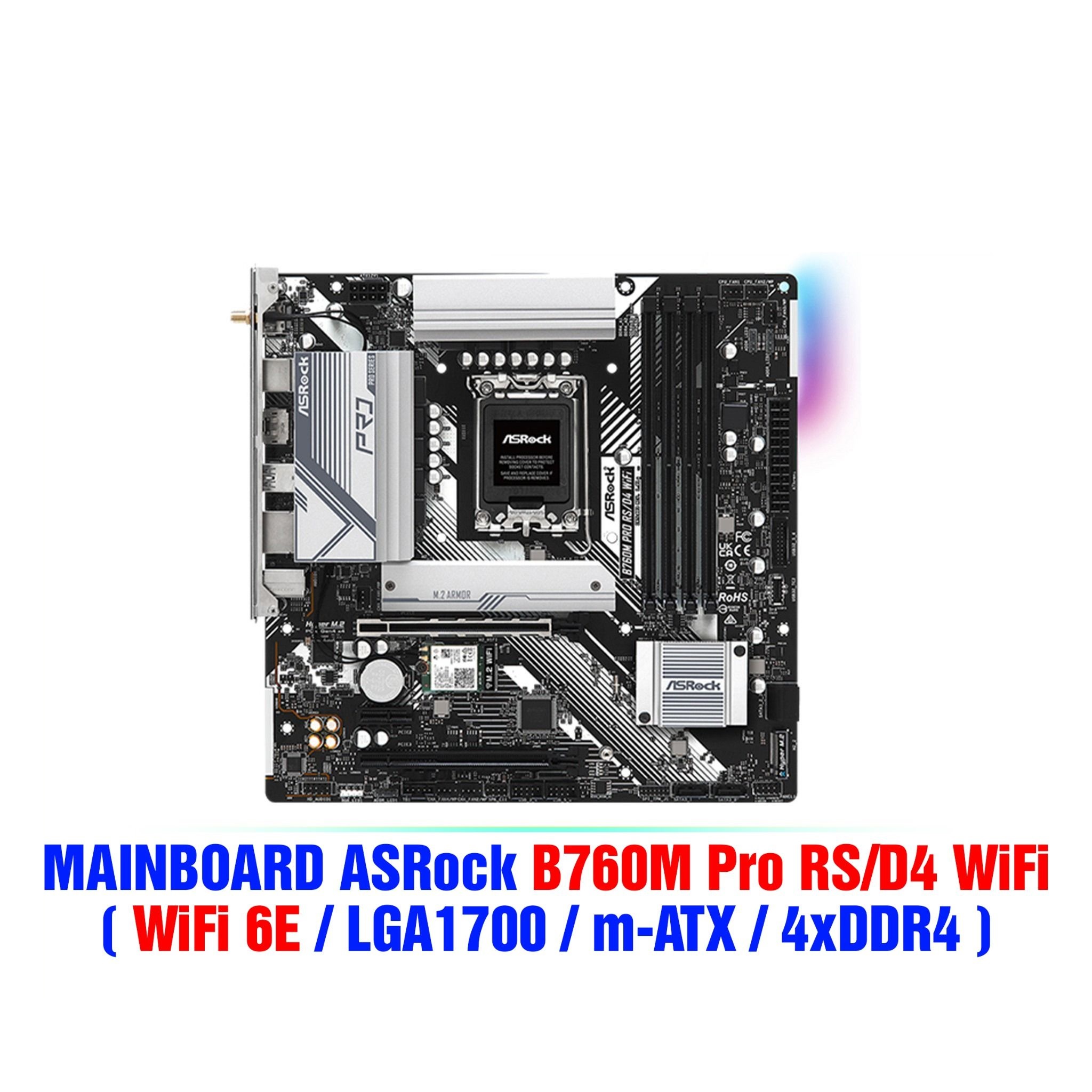

MAINBOARD ASRock B760M PRO RS/D4 WiFi (WiFi 6E / LGA1700 / M-ATX / 4xDDR4)

‎Tính năng độc đáo‎	Rock-Solid Durability – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Pre-Installed I/O Shield – ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker
CPU	‎- Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT)
Chipset	– Intel® B760
RAM	– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support
Đồ hoạ	– Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Âm thanh	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless LAN	802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 + High speed class II – Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Khe cắm mở rộng	CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks – Supports AMD CrossFire™
Lưu trữ	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	– 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
‎Kết nối‎	– 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

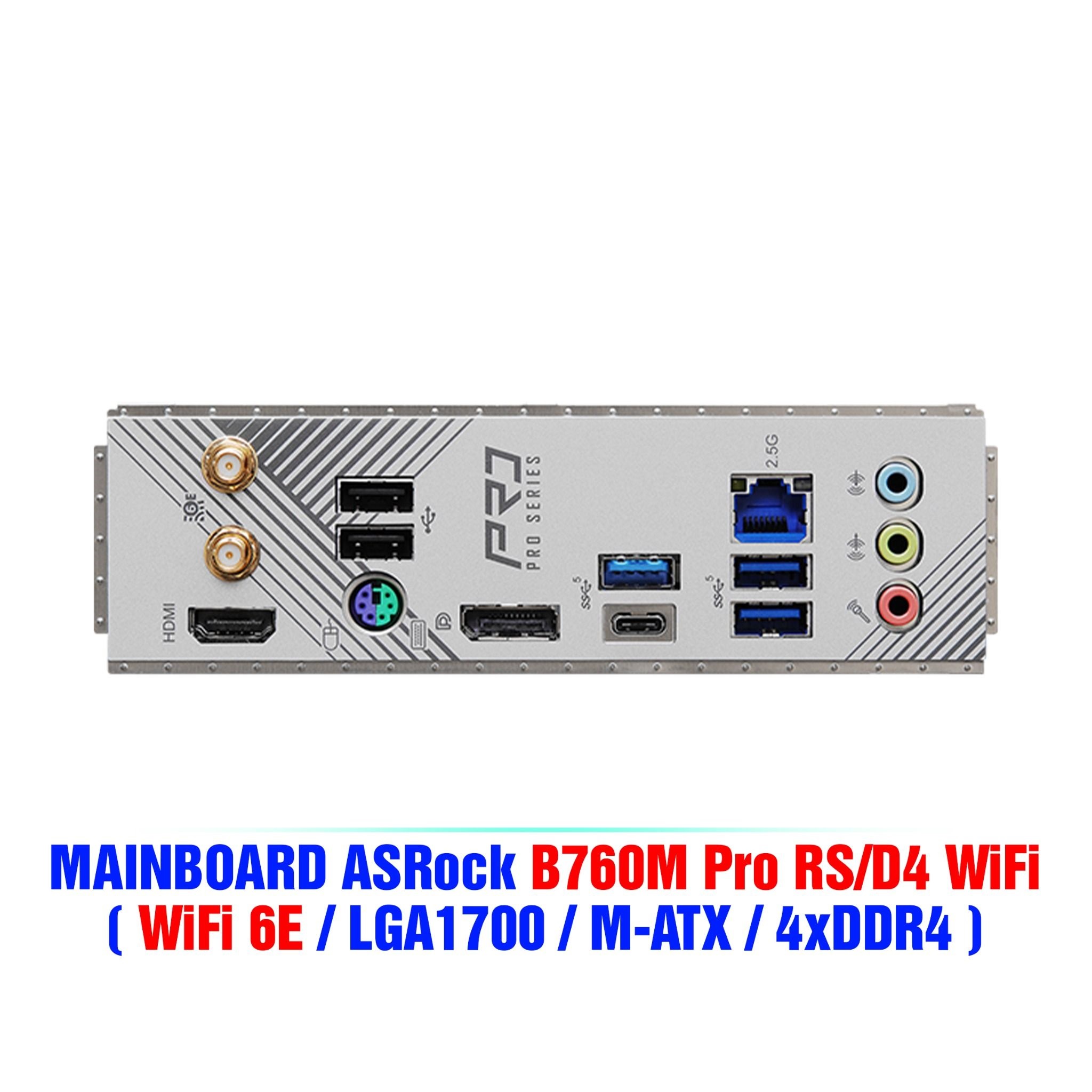

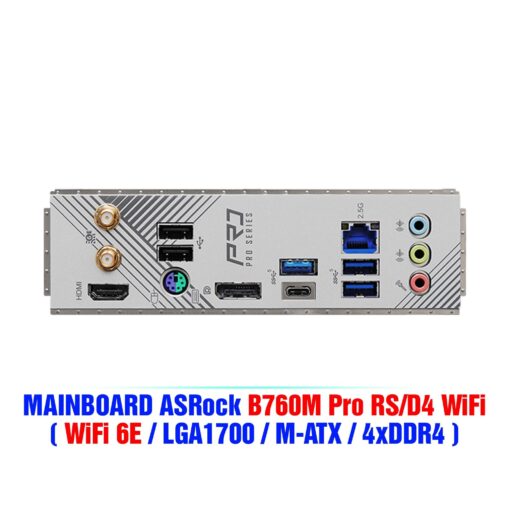

‎Bảng điều khiển phía sau I/O	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI and Software	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.

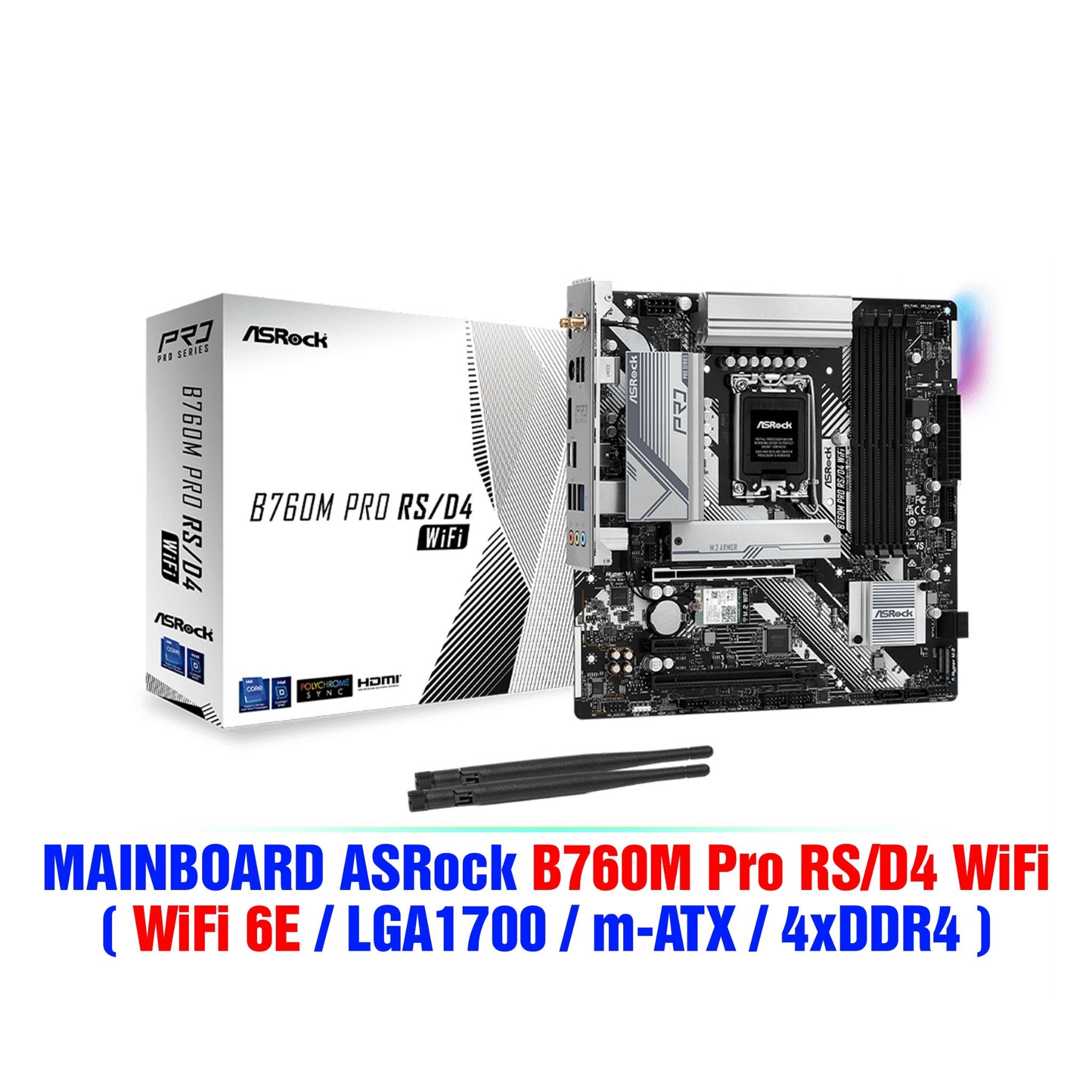

Accessories	– 1 x User Manual – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 2 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	– Microsoft® Windows® 10 64-bit / 11 64-bit *Windows® 10 only supports version 21H2 or later
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
