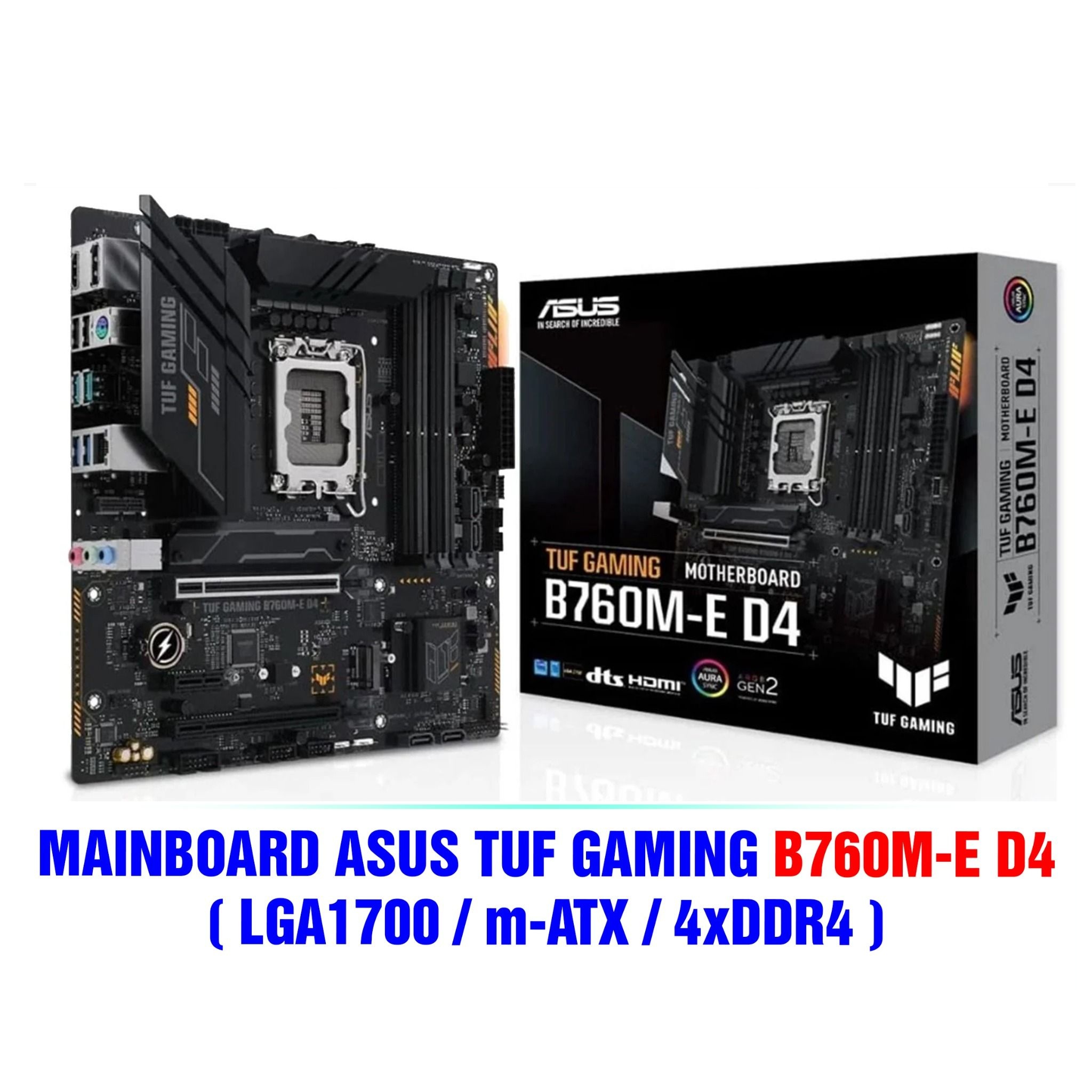

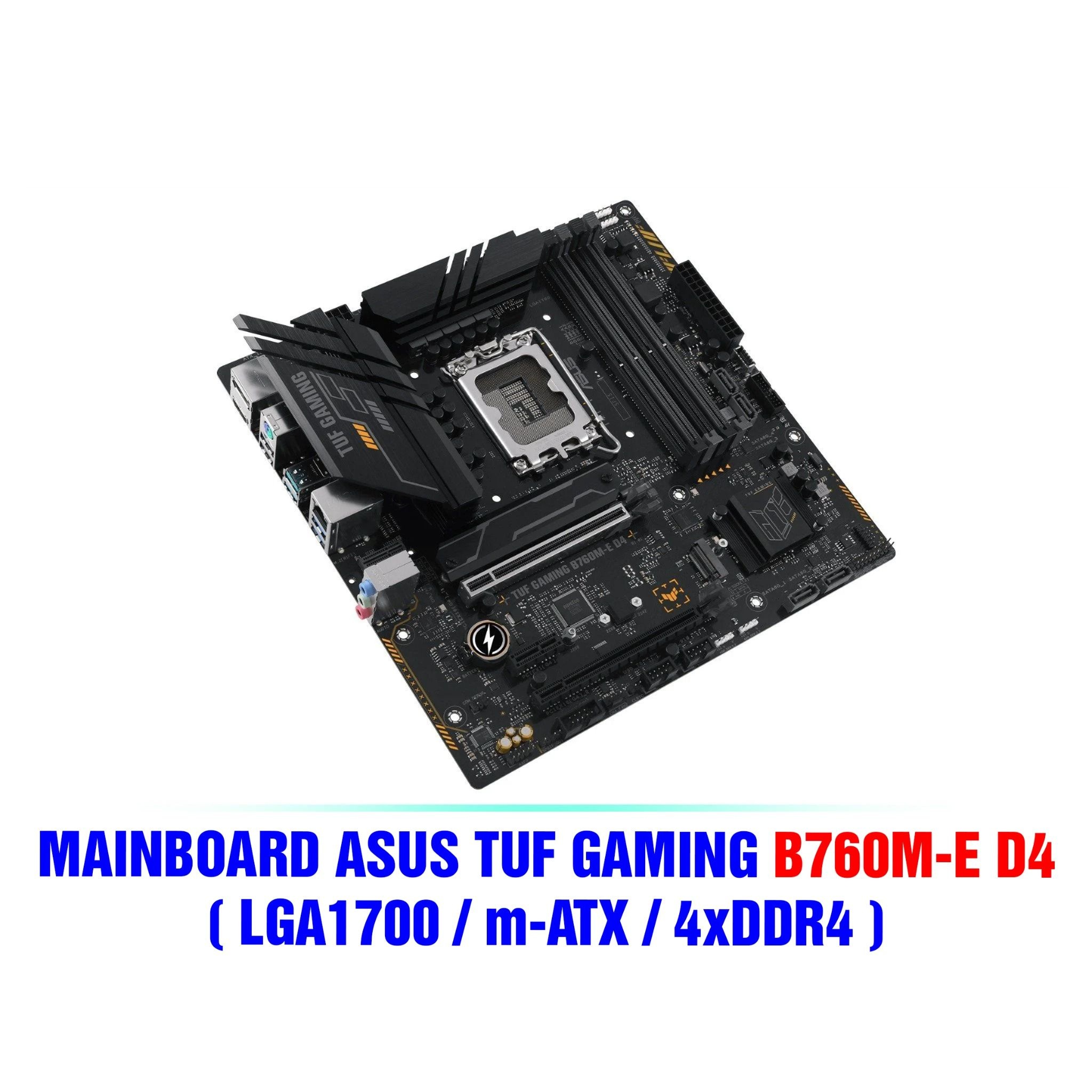

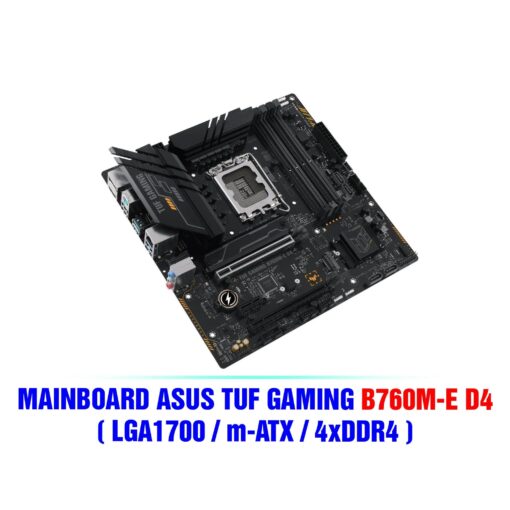

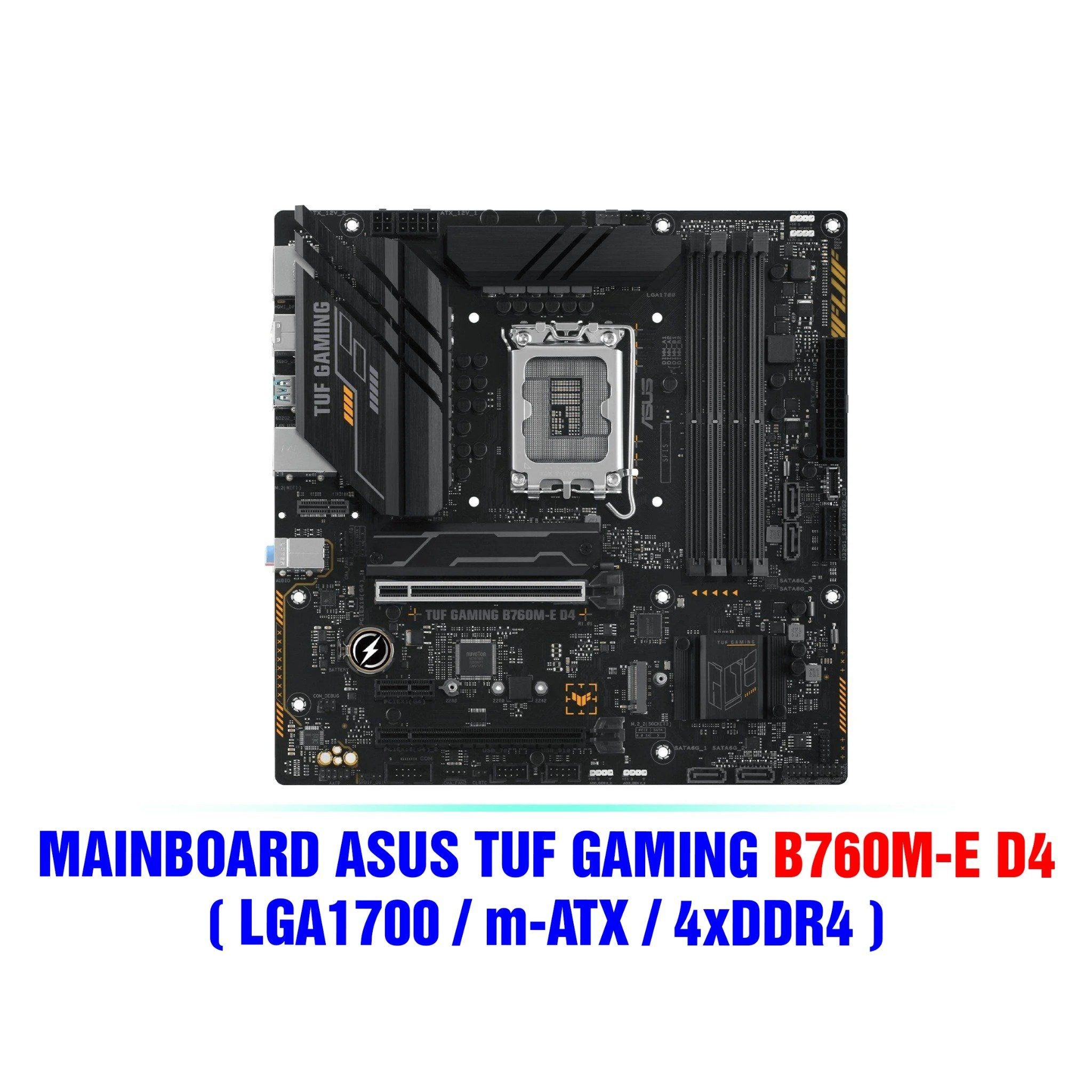

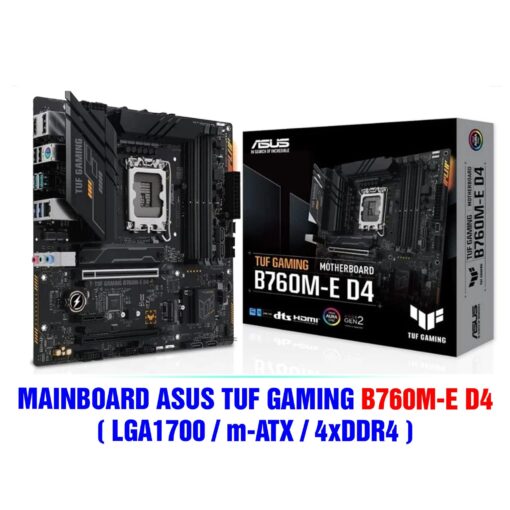

MAINBOARD ASUS TUF GAMING B760M-E D4 ( LGA1700 / m-ATX / 4xDDR4 )

Giá: 2,890,000 ₫

Thị trường: ~~3,690,000 ₫~~

Tiết kiệm: 800,000 ₫ (22%)

Hãng sản xuất: Asus
Model: B760M – E D4
Hỗ trợ ram: DDR4
Hỗ trợ cpu: Thế hệ 12th – 13th – 14th (Mới Nhất)
Bảo hành: 36 Tháng

Chat facebookLiên hệ qua facebook Gọi điện thoạiLiên hệ trực tiếp Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: Intel B760, Linh Kiện PC, Mainboard - Bo mạch chủ

Mô tả
Đánh giá (0)

MAINBOARD ASUS TUF GAMING B760M-PLUS D4 ( LGA1700 / M-ATX / 4xDDR4 )

Model	TUF GAMING B760M-E D4
News & Updates	2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.
CPU	Intel^®Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^®Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors* Supports Intel^®Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® B760 Chipset
Memory	4 x DIMM slots, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics	1 x DisplayPort 1 x HDMI^TM port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel^® Core™ Processors (14^th &13^th & 12^th Gen) 1 x PCIe 4.0 x16 slot Intel^® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^® Core™ Processors (14^th &13^th & 12^th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth	Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A) 2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 2 x USB 2.0 headers support 4 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

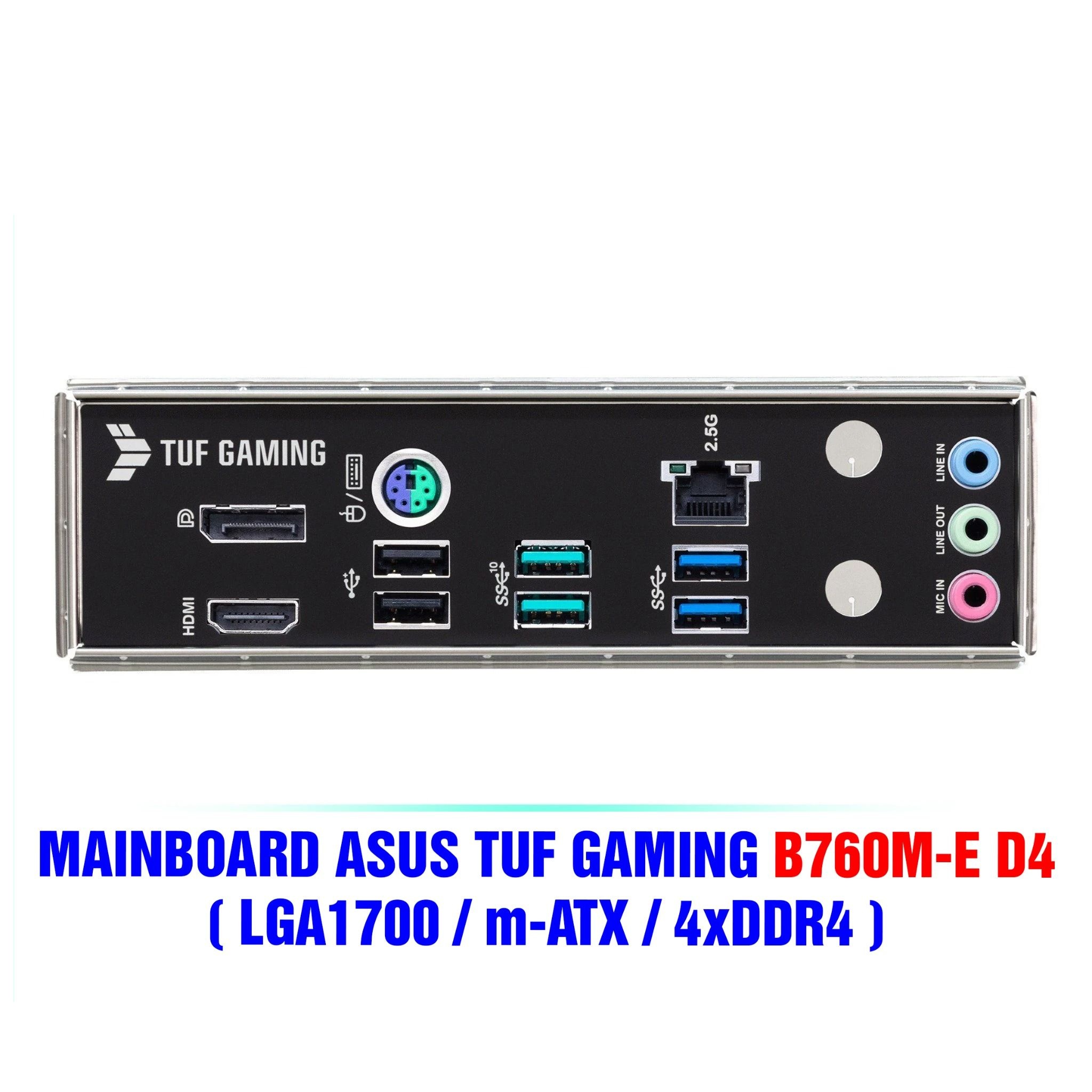

Back Panel I/O Ports	2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI^TM port 1 x Realtek2.5Gb Ethernet port 3 x Audio jacks 1 x Vertical M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI^TM port 1 x Realtek2.5Gb Ethernet port 3 x Audio jacks 1 x Vertical M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out header
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

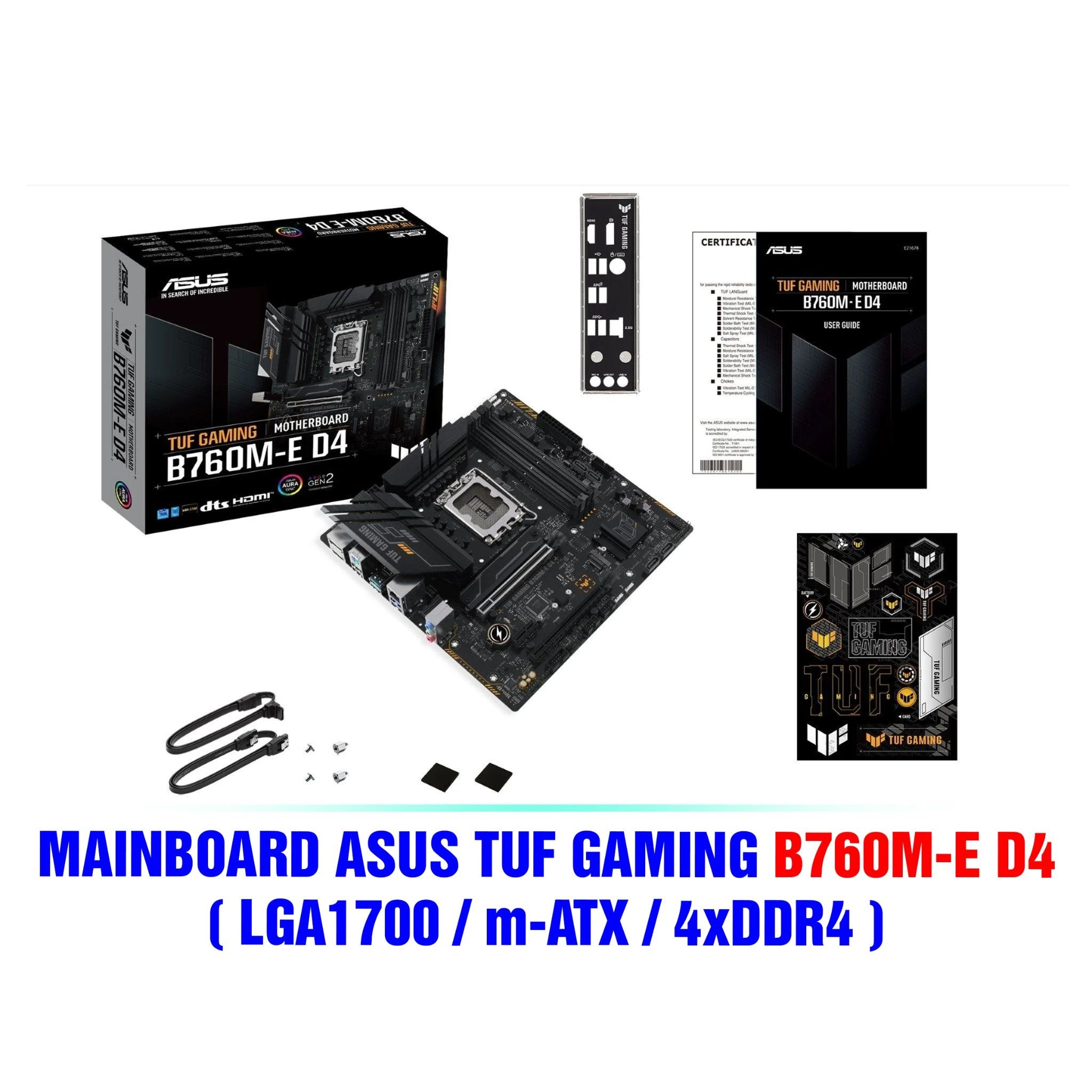

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Documentation 1 x TUF Certification card 1 x User guide
Operating System	Windows^®11, Windows^®10 64-bit
Form Factor	mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
