-24%

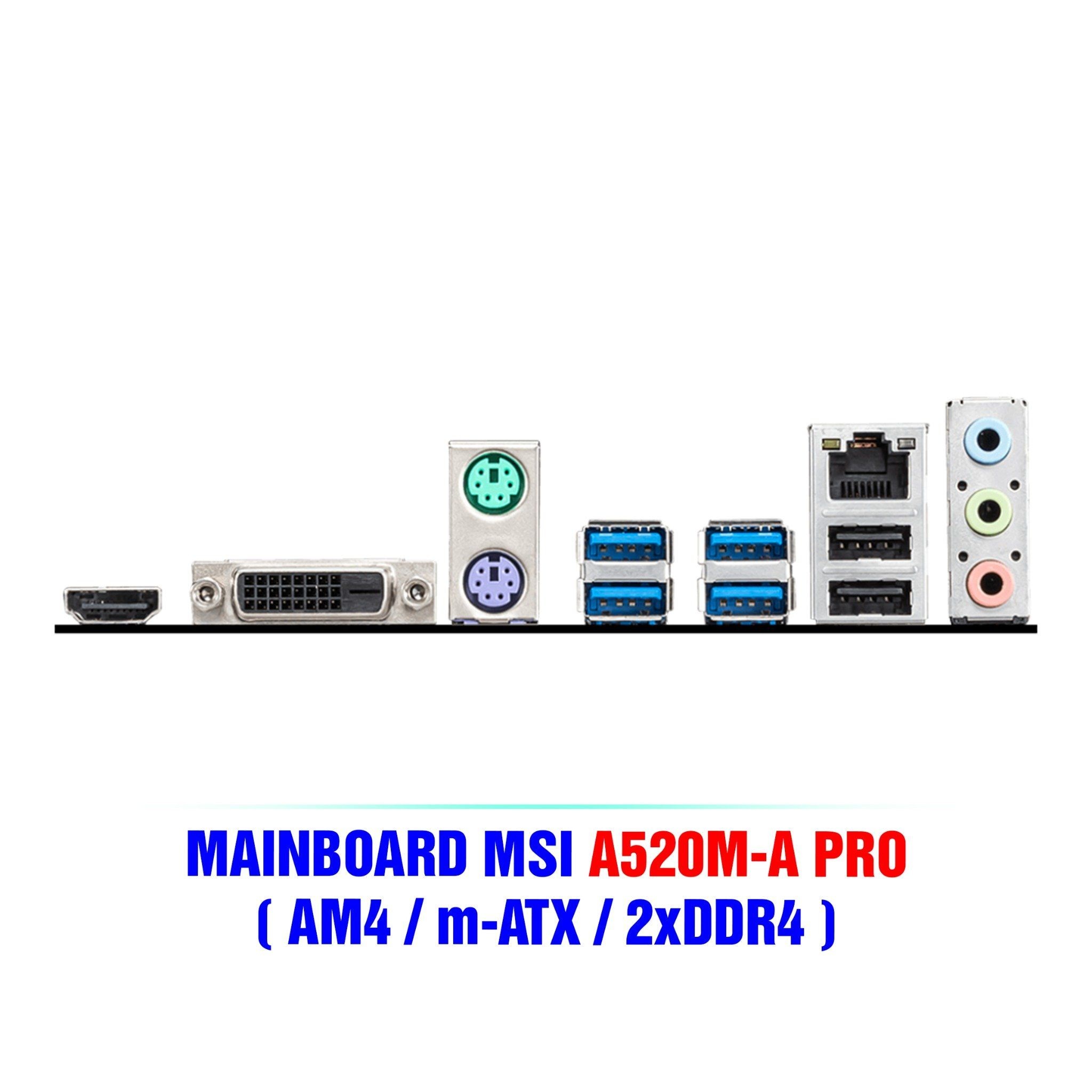

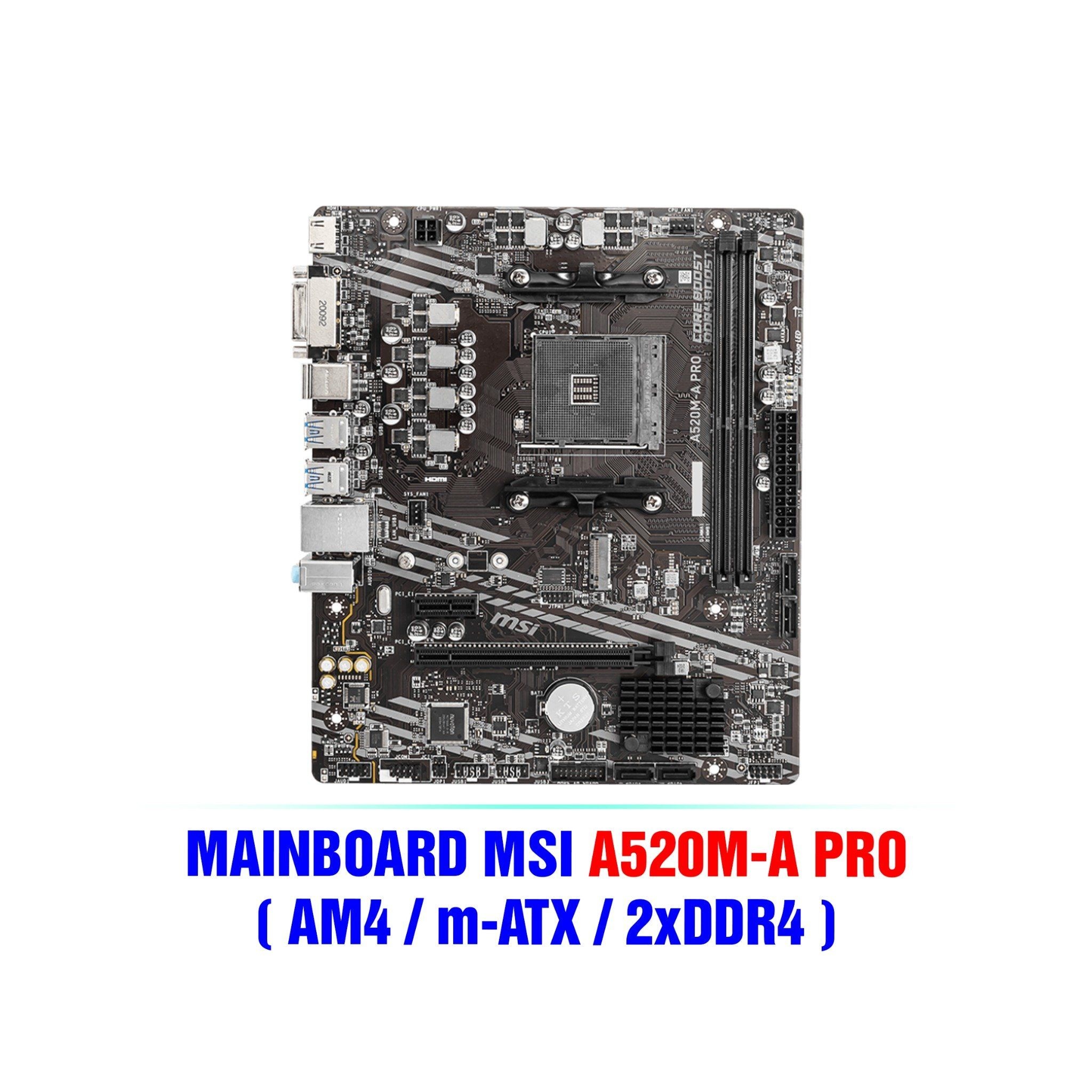

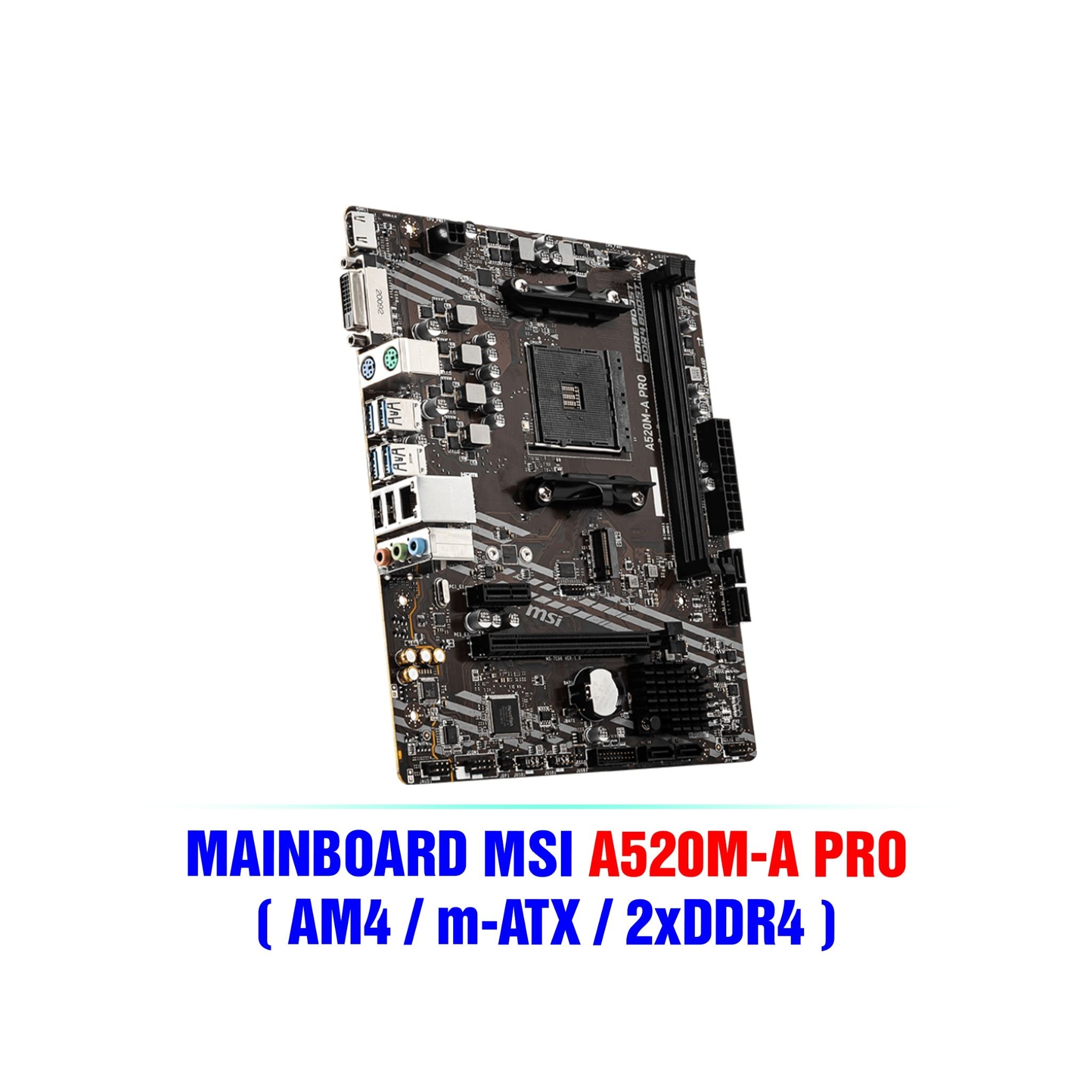

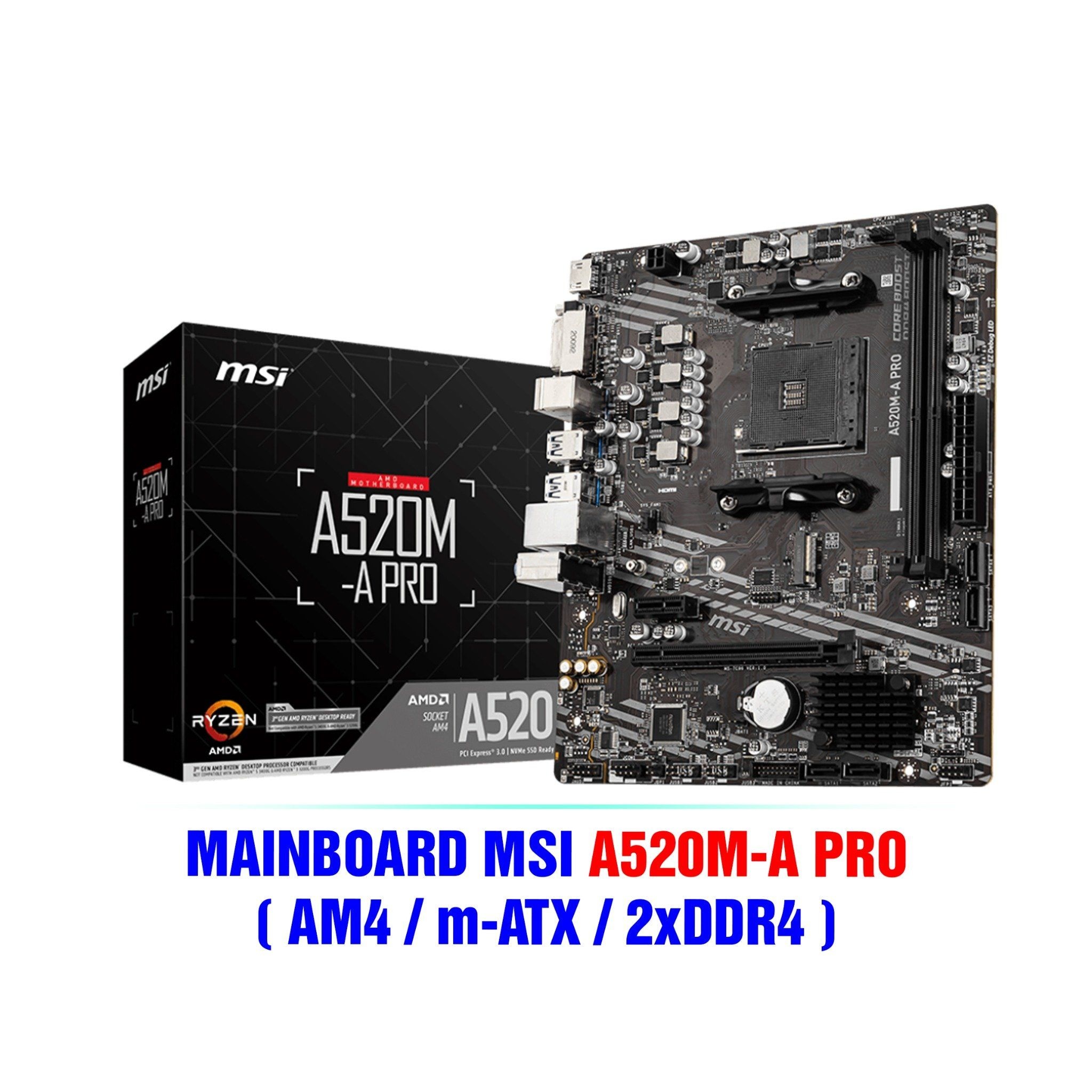

MAINBOARD MSI A520M-A PRO ( AM4 / m-ATX / 2xDDR4 )

Giá: 1,290,000 ₫

Thị trường: ~~1,690,000 ₫~~

Tiết kiệm: 400,000 ₫ (24%)

Hãng sản xuất: MSI
Model: A520M-A PRO
Hỗ trợ ram: DDR4
Hỗ trợ cpu: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series (AM4)
Bảo hành: 36 Tháng 1 Đổi 1

CHIPSET

AMD A520 Chipset

CPU SUPPORT

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

MEMORY

2x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  - 1DPC 1R max speed 4600 MHz
  - 1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

EXPANSION SLOT

1x PCIe 3.0 x16 slot (from AMD processor)
- Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors
- Supports x8 speed with Ryzen™ 3000G processors
- Supports x4 speed with AMD^® Athlon™ with Radeon Graphics processors
1x PCIe 3.0 x1 slot

ONBOARD GRAPHICS

1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
Support HDCP 1.4 & 2.3
1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
Maximum shared memory of 16 GB

STORAGE

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
- Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
- Supports 2242/ 2260/ 2280 storage devices

RAID

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

USB

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

LAN

AUDIO

INTERNAL I/O

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
