MODEL NAME

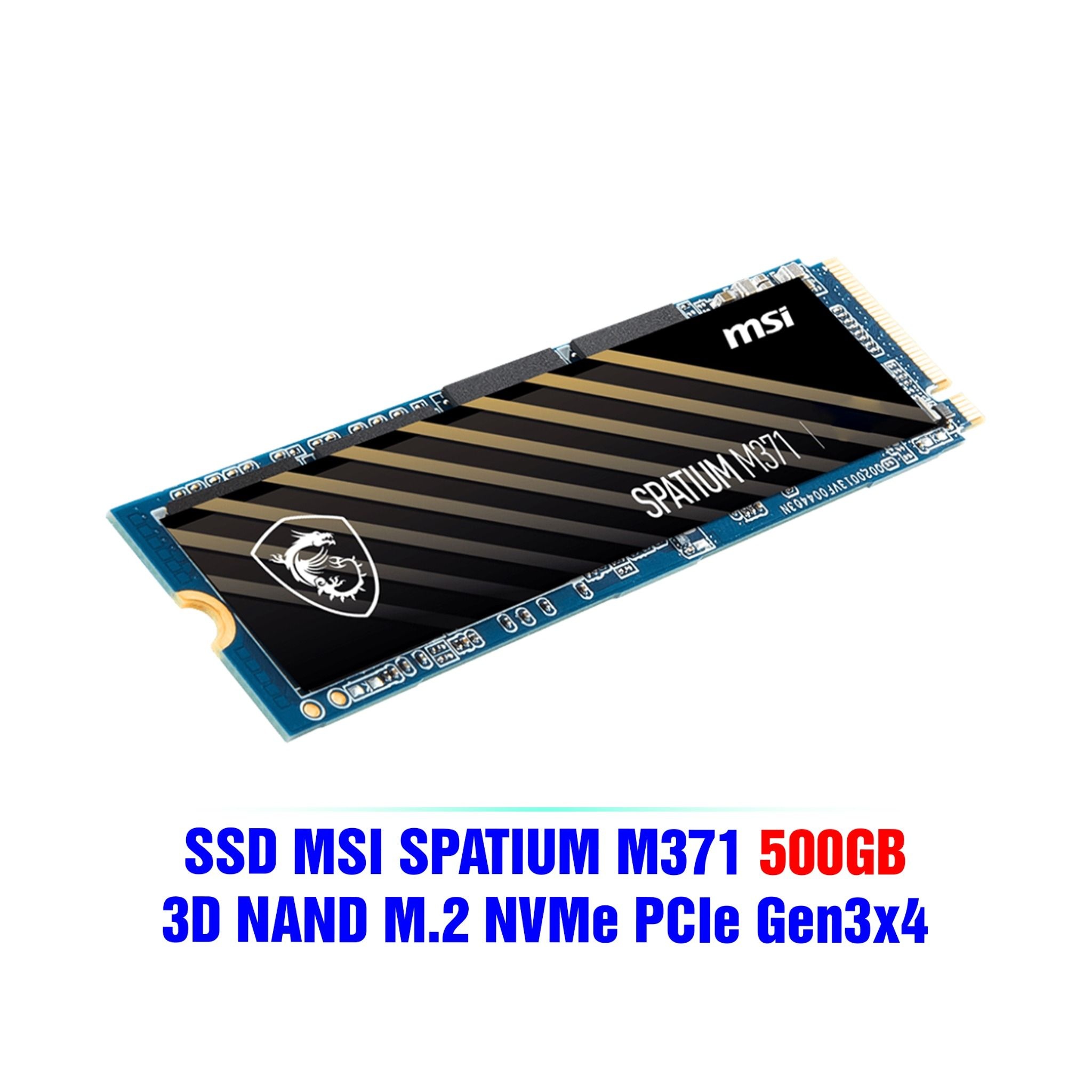

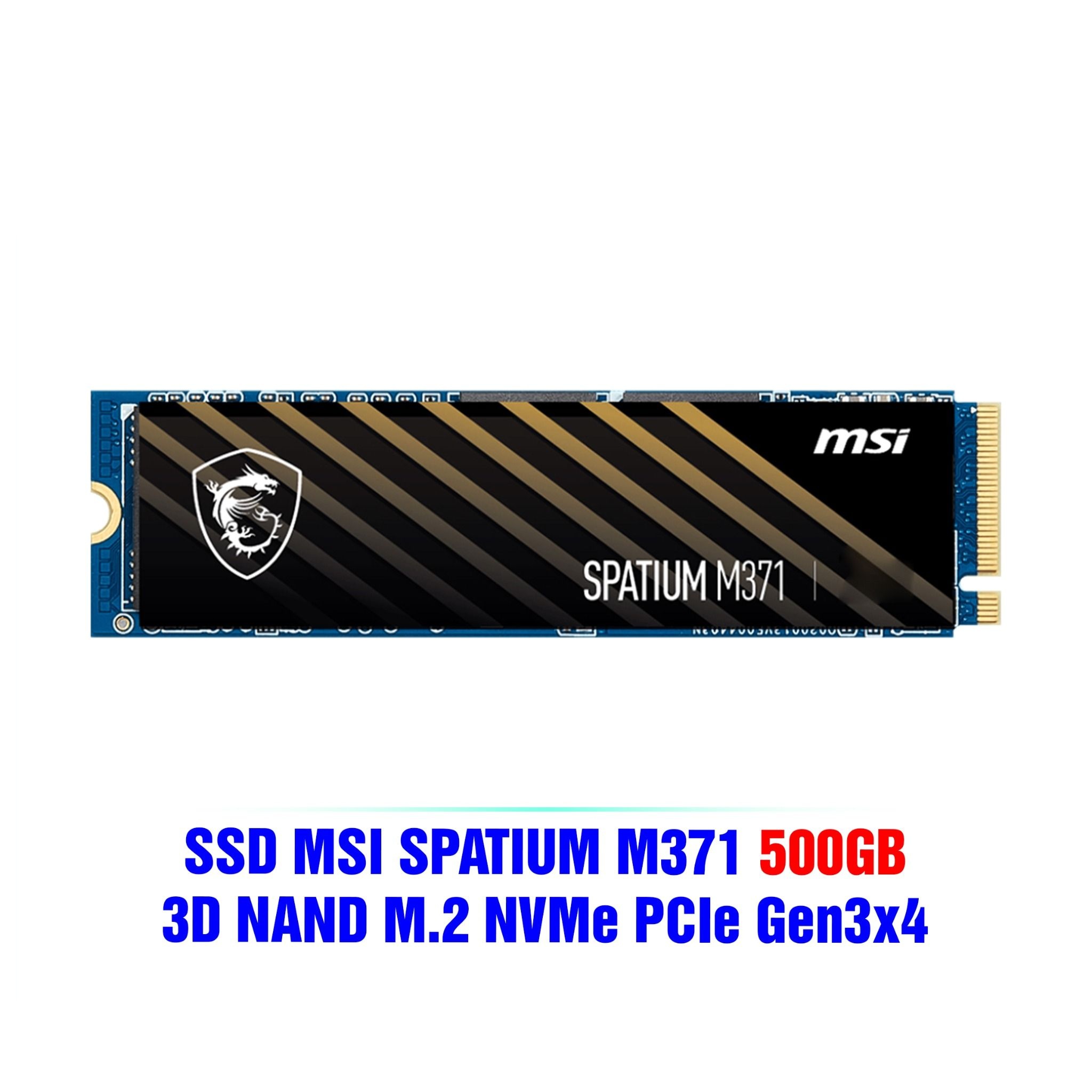

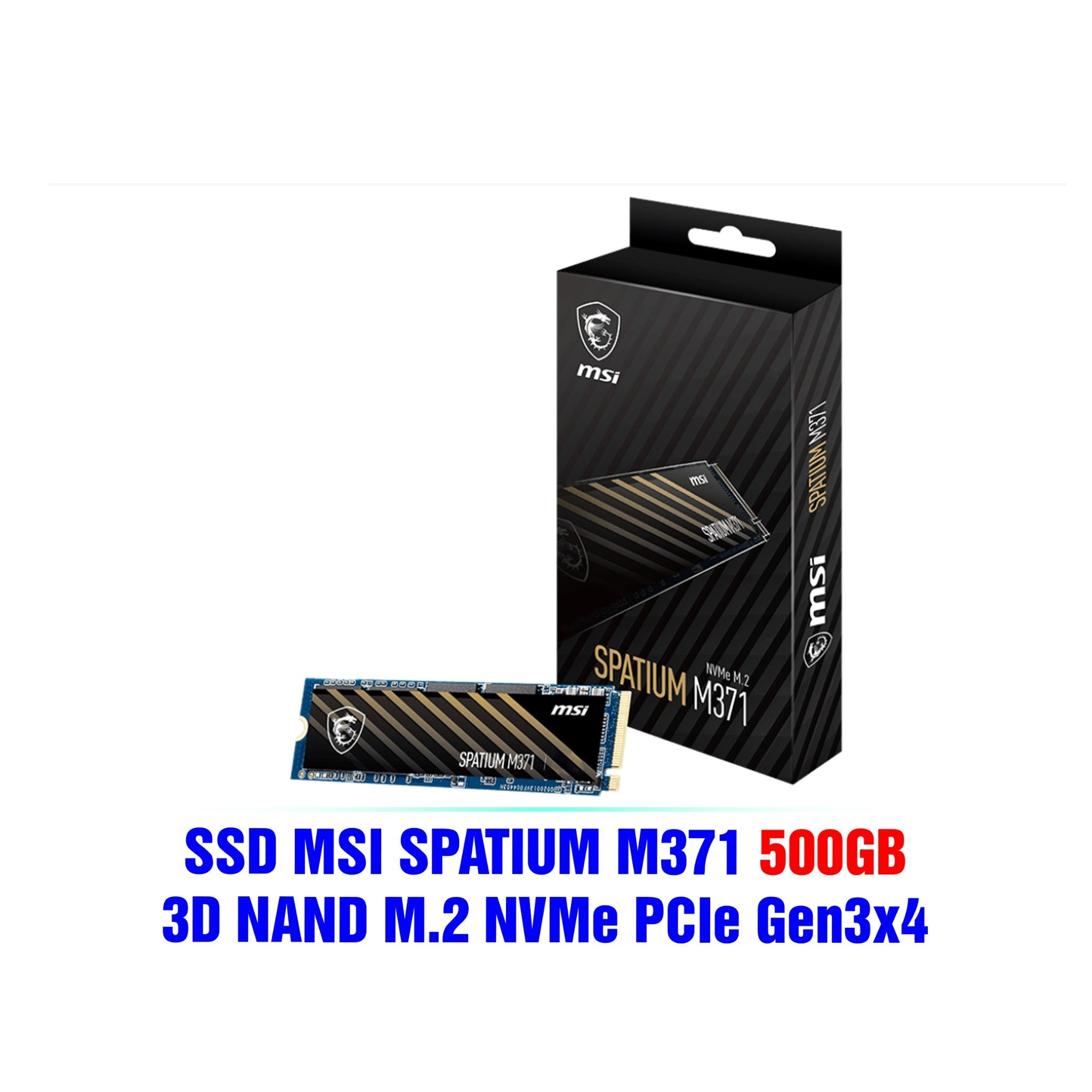

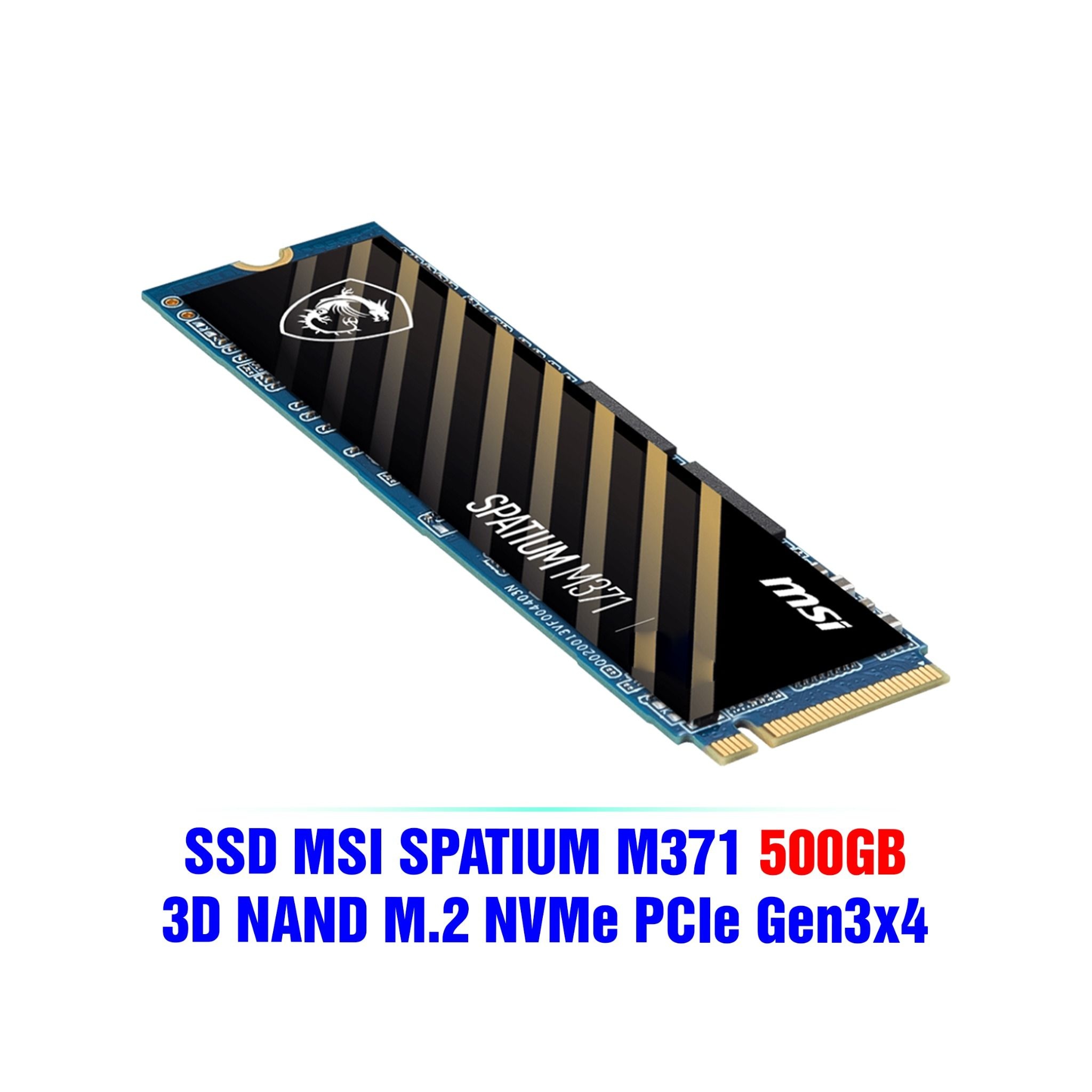

SPATIUM M371 NVMe M.2

CAPACITY

500GB

CONTROLLER

PHISON E13T

FLASH MEMORY

3D NAND

FORM FACTOR

M.2 2280

INTERFACE

PCIe Gen3x4, NVMe 1.3

COMPATIBILITY

PCIe Gen3 / Gen2 / Gen1

DIMENSIONS

80.00mm (L) x 22.00mm (W) x 2.15mm (H)

SEQUENTIAL READ UP TO (MB/S)

2200

SEQUENTIAL WRITE UP TO (MB/S)

1150

RANDOM READ 4KB UP TO (IOPS)

60,000

RANDOM WRITE 4KB UP TO (IOPS)

200,000

MAXIMUM OPERATING POWER (W)

2.4

IDLE POWER PS3 (MW)

30

LOW POWER L1.2 (MW)

5

OPERATING TEMPERATURES

0°C – 70°C

STORAGE TEMPERATURES

-40°C – 85°C

TERABYTES WRITTEN (TBW)

110

MEAN TIME BETWEEN FAILURE (MTBF)

Up to 1,500,000 Hours

ADVANCED FEATURES

TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
