Graphics Engine

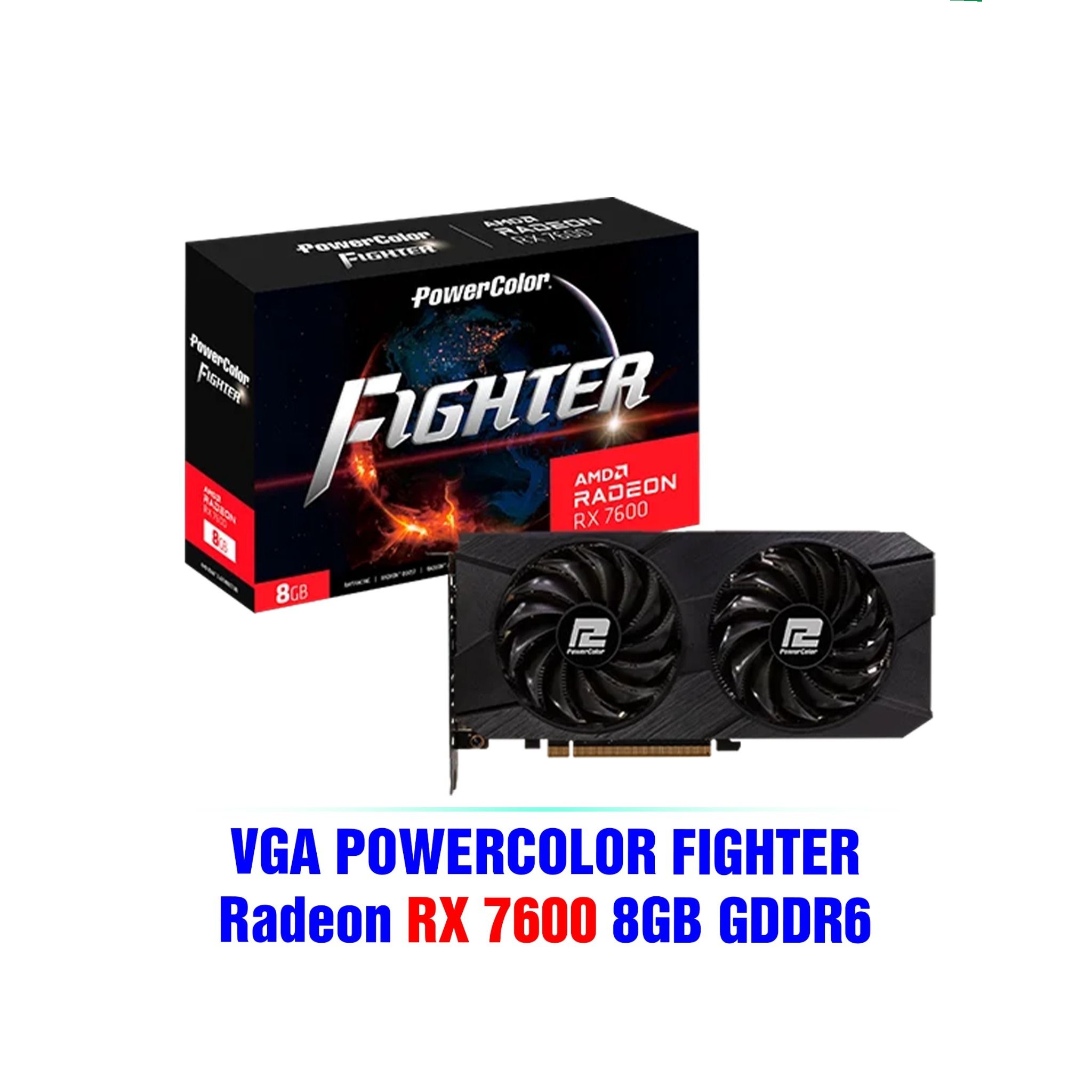

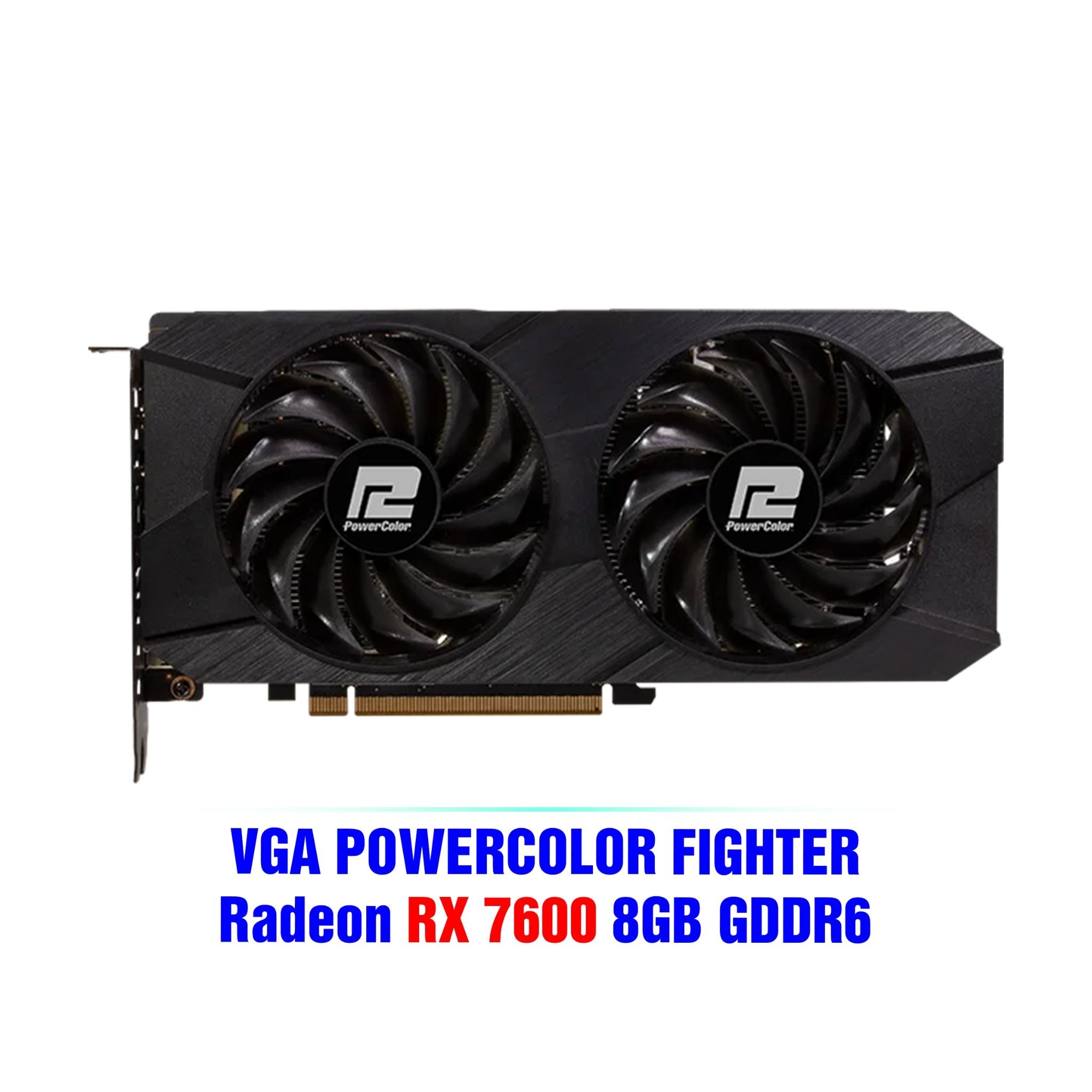

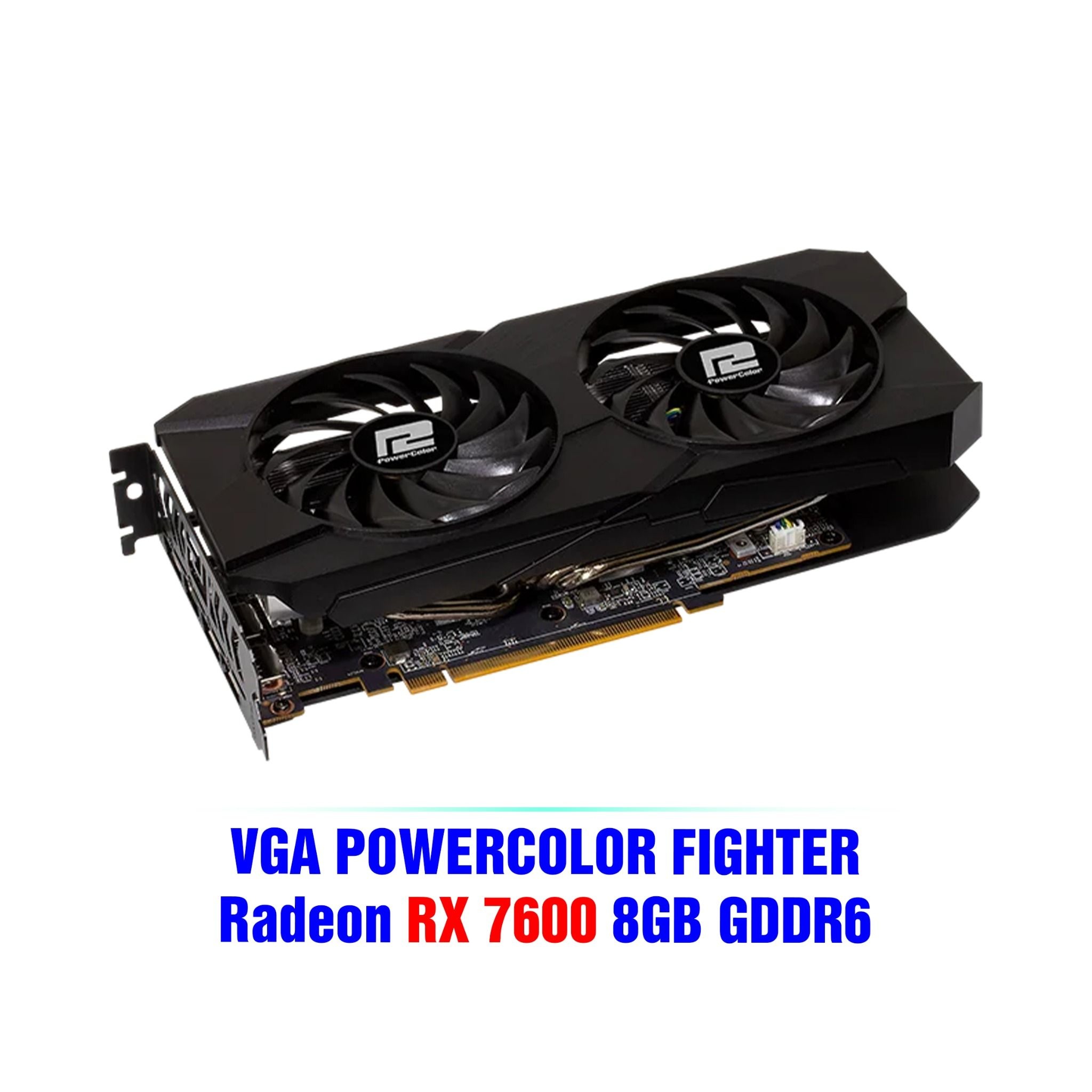

AMD Radeon™ RX 7600

Model Name

RX7600 8G-F/V2

Series

Fighter

Stream Processor

2048 Units

Video Memory

8GB GDDR6

Memory Speed

18.0 Gbps

Memory Interface

128-bit

Engine Clock(STD/Silent)

up to 2250MHz(Game)
up to 2655MHz(Boost)

Bus Standard

PCIE 4.0 x 8

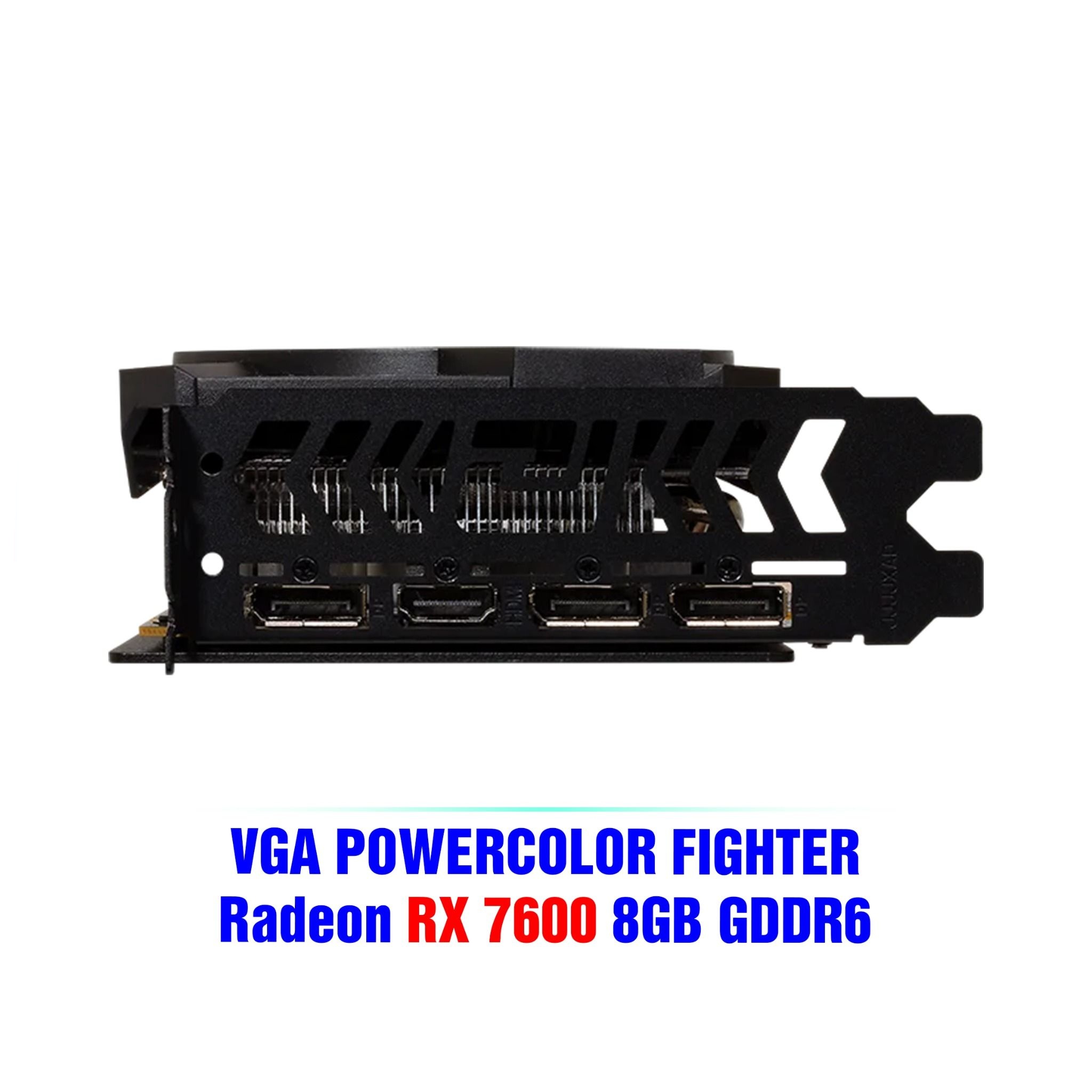

Standard Display Connectors

1 x HDMI 2.1
3 x DisplayPort 2.1

DirectX® Support

12

OpenGL

4.6

Support

• AMD Stream Technology

• AMD Eyefinity Technology

• AMD Smart Access Memory

DisplayPort
HDMI

7680×4320

Board Dimensions

241mm*116mm*49mm
253mm*132mm*49mm(with bracket)

Slot

2.2

Minimum System Power requirement (W)

600W

Extension Power Connector

One 8-pin PCI Express Power connector
